| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 16 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

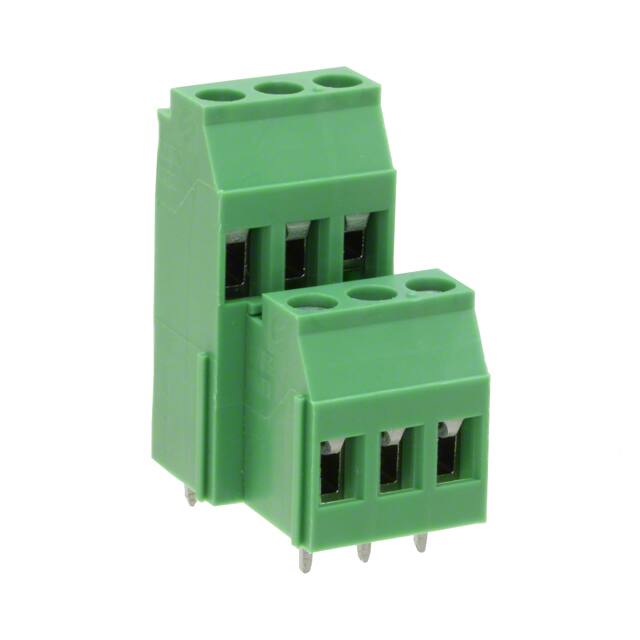

The Würth Elektronik 691233510006S is a wire to board terminal block designed for reliable and secure wire connections in a compact form factor. It offers 6 total positions arranged as 3 positions per level across 2 levels, with a standard 5.08mm pitch. The component uses a screw rising cage clamp termination style, ensuring a robust and vibration-resistant connection for wires ranging from 12 to 30 AWG.
This terminal block is rated for a current of 20A and a voltage of 300V, making it suitable for a variety of power distribution and signal interconnection applications. The through hole mounting style provides a strong mechanical bond to the PCB. The green housing includes a side interlocking feature, allowing multiple blocks to be joined for additional circuits without tools.
The mating orientation is horizontal with the board, which facilitates a low-profile wire entry parallel to the PCB surface. This design is particularly useful in space-constrained enclosures where vertical clearance is limited.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.29 | $4.29 |
| 10+ | $3.76 | $3.76 |
| 50+ | $3.40 | $3.40 |
| 100+ | $3.04 | $3.04 |
| 500+ | $2.86 | $2.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 total positions, arranged as 3 positions per level across 2 levels.
The pitch is 5.08mm (0.200 inches).
It is rated for 20A and 300V.
It uses a screw rising cage clamp termination.
It accepts wire from 12 to 30 AWG.
Through hole mounting.
