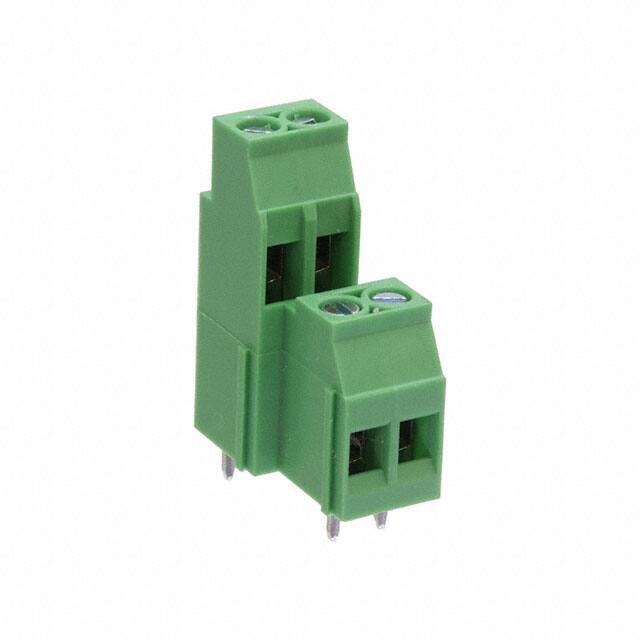

691233510004 The Würth Elektronik 691233510004 is a 5.08mm pitch, double level wire to board terminal block from the WR-TBL series. It features a rising cage clamp termination, rated for 20A and 300V.
Mfr Part #:

691233510004

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 691233510004 is a 5.08mm pitch, double level wire to board terminal block from the WR-TBL series. It features a rising cage clamp termination, rated for 20A and 300V.
✓ Total Stock: 10 pcs
$ Price Range: $2.40 - $4.24

691233510004 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691233510004 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Color
Contact Resistance
Current
Current Rating
Features
Halogen Free
Industrial Grade
Insulator Material
Mating Orientation
Medical Grade
Military Grade
Mounting Type
Number of Levels
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Screw Size
Tape & Reel
Torque
Voltage
Voltage Rating
Wire Gauge
Wire Termination
Withstanding Voltage
View Similar Products (0)

691233510004 Description

Short technical summary and product information.

This is a WR-TBL series terminal block from Würth Elektronik, part number 691233510004. It is a double level, horizontal entry wire to board connector with a 5.08mm pitch.



Rated for 20A and 300V, with a withstand voltage of 1.6kV and contact resistance of 20mOhm max. Accepts 12-22 AWG solid or stranded wire. Screw termination with rising cage clamp, torque 0.49 Nm, strip length 6-7 mm.



Green PA66 insulator with UL94-V0 flammability rating. Brass housing, steel zinc plated screw, stainless steel wire guard. RoHS compliant. UL certified E315414. Operating temperature -40°C to 105°C.



Through hole mounting with tin-plated solder tails. Packaged in box. Suitable for wave soldering.

691233510004 Quick Information

Product Type: Wire to Board Terminal Block
Series: 2335
Canonical Name: WR-TBL Series 2335, 5.08mm Pitch, Double Level, Horizontal Entry, Wire to Board Terminal Block with Rising Cage Clamp
Subcategory: Wire to Board

691233510004 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691233510004 Estimated Pricing

Qty Low High
1+ $4.24 $4.24
10+ $3.78 $3.78
50+ $3.51 $3.51
110+ $3.14 $3.14
220+ $2.40 $2.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

691233510004 Features

  • 5.08mm pitch double level terminal block.
  • Rated for 20A and 300V operation.
  • Accepts 12-22 AWG solid or stranded wire.
  • Rising cage clamp screw termination.
  • UL94-V0 rated green PA66 insulator.

691233510004 Applications

  • Ideal for industrial control wiring applications.
  • Used in power distribution and lighting systems.
  • Suitable for building automation and HVAC equipment.
  • Common in appliance and white goods connections.

691233510004 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

2 positions per level, 2 levels total, for 4 positions overall.

What is the pitch of this terminal block?

5.08mm (0.200 inches).

What is the current rating?

20 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole.

What wire gauge does it accept?

12-22 AWG solid or stranded wire.

What is the operating temperature range?

-40°C to 105°C.
