| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Features | |
| Housing Material | |
| Industrial Grade | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature Range | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Screw Size | |
| Tape & Reel | |
| Termination Style | |
| Torque | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination | |
| Withstanding Voltage |

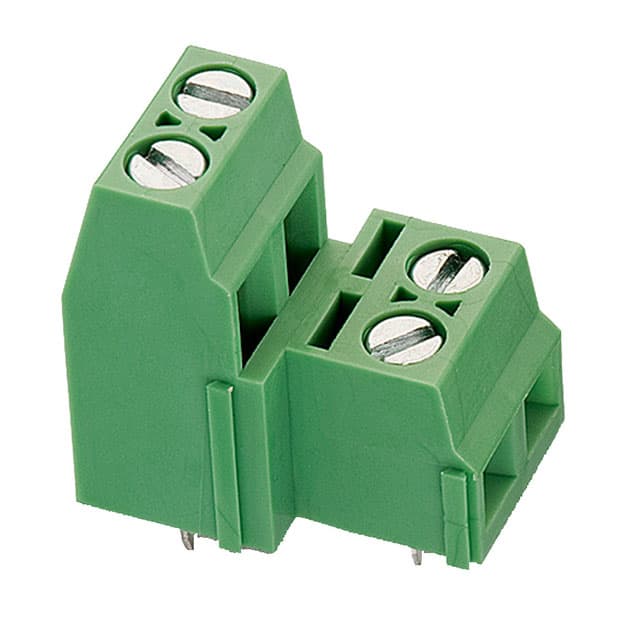

The Würth Elektronik 691231710004 is a WR-TBL series 2317 double level terminal block designed for wire-to-board connections. It features a 5.00mm pitch and 2 positions per level, providing a total of 4 connection points in a compact through-hole package. The horizontal entry orientation with a rising cage clamp mechanism ensures secure wire termination for solid or stranded wires from 16 to 26 AWG.
This terminal block is rated for 10A continuous current at 300VAC, with a withstand voltage of 1.6kV and a maximum contact resistance of 20mOhm. The housing is made of green PA66 with a UL94 V-0 flammability rating, and the terminal screws are steel with zinc plating. The wire guard is stainless steel, and solder tails are tin-plated for reliable soldering.
The operating temperature range is -40°C to 105°C, making it suitable for industrial and commercial environments. The product is RoHS compliant and certified under UL E315414. It is packaged in a box and designed for wave soldering processes.
Application areas include power supplies, industrial controls, and building automation where reliable wire-to-board connections are required. The interlocking side feature allows multiple units to be combined for additional positions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.87 | $2.87 |
| 10+ | $2.54 | $2.54 |
| 50+ | $2.35 | $2.35 |
| 100+ | $2.09 | $2.09 |
| 430+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions per level and 2 levels, providing a total of 4 connection points.
The pitch is 5.00mm.
The rated current is 10A.
The working voltage is 300VAC.
It is through-hole mounting.
-40°C to 105°C.
Solid or stranded wires from 16 to 26 AWG.
