Mfr Part #:

691218410003

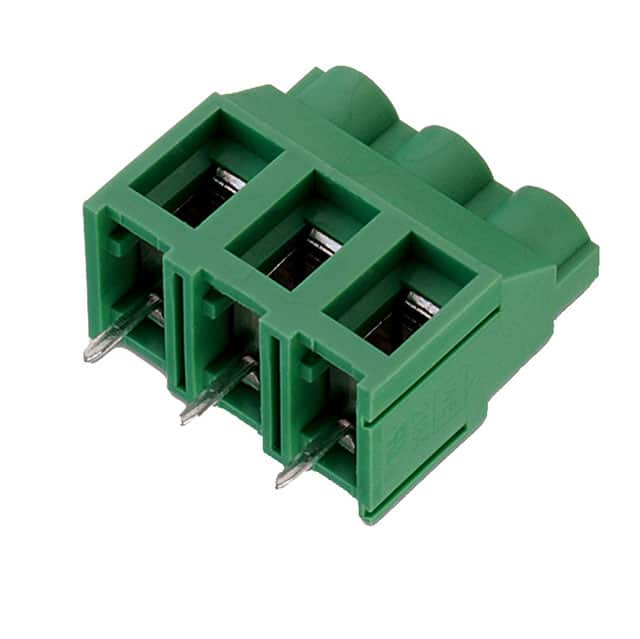

3-position, 7.62mm pitch wire-to-board terminal block from Würth Elektronik, rated for 30A and 300V, with rising cage clamp termination and through hole mounting.

✓ Total Stock: 37 pcs

$ Price Range: $1.52 - $2.32

691218410003 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	37 pcs On Request	37 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

691218410003 Description

Short technical summary and product information.

The Würth Elektronik 691218410003 is a 3-position wire-to-board terminal block from the WR-TBL series 2184. It features a 7.62mm pitch and a horizontal entry orientation with rising cage clamp termination. This through-hole component is rated for 30A continuous current and 300V working voltage, with a dielectric withstanding voltage of 1.6kV and contact resistance of 20mOhm.

Designed for reliable connections, the terminal block accepts solid or stranded wire from 24 to 10 AWG (0.205-5.26mm²). The wire strip length is 6-7mm, and the screw torque specification is 0.78Nm (M3.5 screw). The insulator is made of PA66 with UL94 V-0 flammability rating, and the contacts are brass with tin-plated solder tails. The housing is green, and side interlocking features allow for multi-position assembly.

This terminal block is suitable for use in industrial control, power distribution, and general electronic equipment requiring high-current wire-to-board connections. It is soldered using JEDEC lead-free wave soldering process and is packaged in a box. The component is RoHS compliant and lead-free, with cULus certification (E315414).

691218410003 Quick Information

Product Type: Terminal Block

Series: 2184

Canonical Name: WR-TBL Series 2184 3-Position 7.62mm Pitch Horizontal Entry Modular Terminal Block with Rising Cage Clamp

Subcategory: Wire-to-Board Terminal Block

691218410003 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free

691218410003 Estimated Pricing

Qty	Low	High
1+	$2.32	$2.32
10+	$2.12	$2.12
50+	$2.00	$2.00
100+	$1.84	$1.84
500+	$1.52	$1.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

691218410003 Features

Rated for 30A continuous current at 300V.
7.62mm pitch with 3 positions per level.
Rising cage clamp for secure wire termination.
Accepts 24-10 AWG solid or stranded wire.
UL94 V-0 flammability rated PA66 insulator.

691218410003 Applications

Ideal for power supply wire-to-board connections.
Used in industrial control and automation systems.
Suitable for lighting and HVAC equipment.
Common in distribution and junction boxes.

691218410003 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the current rating of the 691218410003?

30A

What is the voltage rating?

300V

What is the pitch of this terminal block?

7.62mm

How many positions does it have?

3 positions per level, 1 level

What type of mounting does it use?

Through hole mounting

What wire gauge range is supported?

24-10 AWG solid or stranded

Is the terminal block RoHS compliant?

Yes, RoHS compliant and lead-free

Category	Wire to Board
Manufacturer Name	Würth Elektronik
Color	Green
Contact Material	Brass
Contact Resistance	20 mOhm
Current	30 A
Current Rating	30 A
Dielectric Withstanding Voltage	1.6 kV
Features	Interlocking (Side)
Halogen Free	No
Insulator Material	PA66
Lead Spacing	7.62 mm
Lead Style	Solder Tail
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature	-40°C to 105°C
Pitch	7.62 mm
Positions Per Level	3
Screw Size	M3.5
Tape & Reel	No
Torque	0.78 Nm
Voltage	300 V
Voltage Rating	300 V
Wire Gauge	24-10 AWG (0.205-5.26 mm²)
Wire Termination	Screw - Rising Cage Clamp
