| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Resistance | |
| Current | |
| Insulator Material | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Torque | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

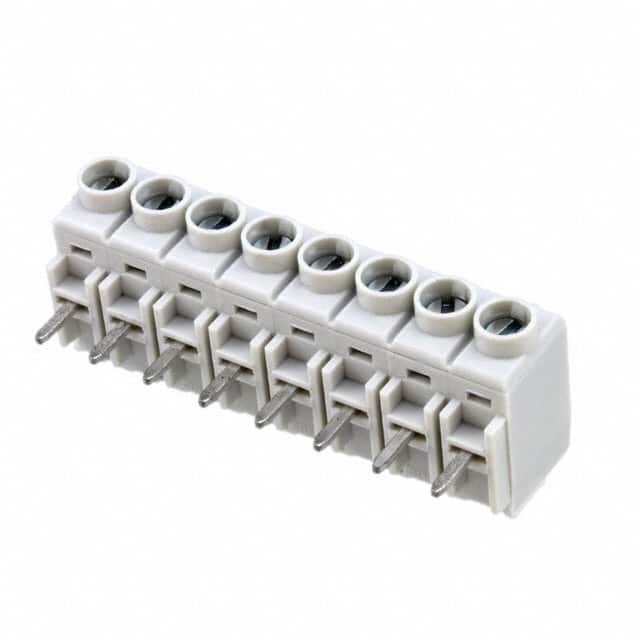

The Würth Elektronik 691132700008 is an 8 position, single level wire to board terminal block from the WR-TBL series 1327. It features a 5.00mm pitch and a through hole mounting style with vertical mating orientation. The screw rising cage clamp termination accepts solid or stranded wire from 30 to 12 AWG.
Electrical ratings include 16A at 300VAC (UL) and 22A at 450VAC (VDE). Withstanding voltage is 1.6kV (UL) and 2.5kV (VDE) with a maximum contact resistance of 20mΩ. The insulator is gray polycarbonate with UL94V0 flammability rating.
Mechanical specifications include a torque of 0.5 Nm (4 Lb·In), M2.5 screw thread, and 6mm wire strip length. Operating temperature range is -30°C to +120°C. The component is RoHS compliant and packaged in a box.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.11 | $7.11 |
| 10+ | $5.79 | $5.79 |
| 50+ | $4.83 | $4.83 |
| 100+ | $4.02 | $4.02 |
| 250+ | $3.66 | $3.66 |
| 500+ | $3.32 | $3.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions in a single level.
The pitch is 5.00mm.
UL current rating is 16A; VDE current rating is 22A.
UL working voltage is 300VAC; VDE working voltage is 450VAC.
It uses through hole mounting.
It accepts solid and stranded wire from 30 to 12 AWG.
The operating temperature range is -30°C to +120°C.
