| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Resistance | |
| Current | |
| Halogen Free | |
| Industrial Grade | |
| Insulator Material | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Screw Size | |
| Tape & Reel | |
| Torque | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

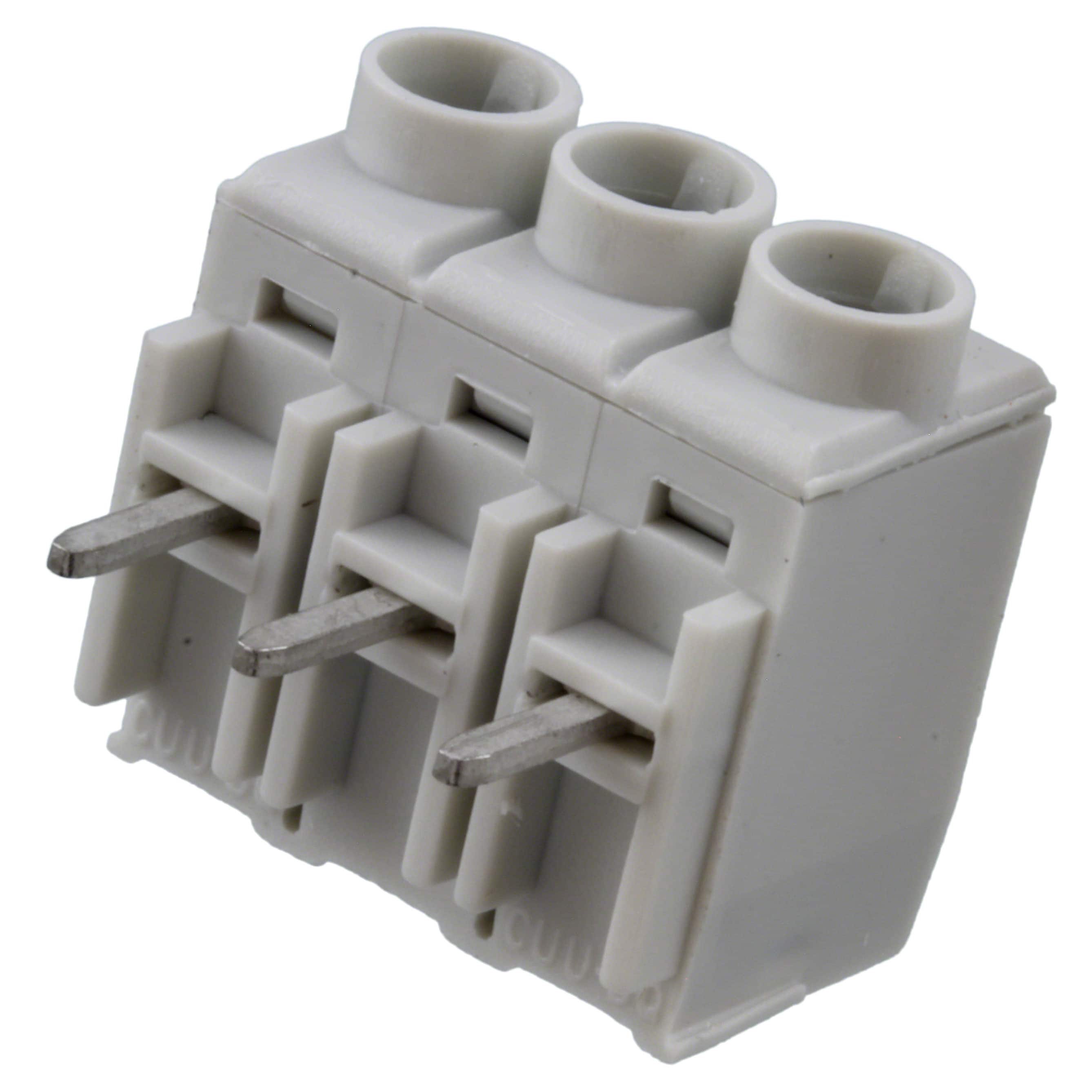

The Würth Elektronik 691132700003 is a 3-position, 1-level wire-to-board terminal block with a 5.00mm pitch, part of the WR-TBL series. It is designed for through-hole mounting with a vertical mating orientation (top entry). The screw-rising cage clamp termination accepts solid or stranded wires from 30 to 12 AWG, with a recommended strip length of 6mm and a tightening torque of 0.5 Nm.
Electrically, it is rated for 16 A (UL) and 22 A (VDE), with working voltages of 300 VAC (UL) and 450 VAC (VDE). The insulator is gray polycarbonate (PC) with a UL94 V-0 flammability rating. The metal housing and terminal screws are made of steel with a zinc finish, while the wire guard is a copper alloy with nickel-tin plating. The operating temperature range is -30°C to +120°C.
This component is RoHS compliant and is packaged in a box. It is suitable for power supplies, industrial controls, and building automation where a reliable, high-current connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.41 | $2.41 |
| 10+ | $1.96 | $1.96 |
| 50+ | $1.63 | $1.63 |
| 100+ | $1.36 | $1.36 |
| 200+ | $1.24 | $1.24 |
| 600+ | $1.12 | $1.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This terminal block has 3 positions per level in a single level configuration.
The pitch is 5.00 mm.
The UL current rating is 16 A and the UL working voltage is 300 VAC. The VDE current rating is 22 A and the VDE working voltage is 450 VAC.
It uses a through-hole mounting type with a vertical (top entry) orientation.
The operating temperature range is -30°C to +120°C.
It accepts solid and stranded wires from 30 AWG to 12 AWG (0.05 mm² to 3.31 mm²).
Yes, the datasheet states it is RoHS compliant.
