| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Resistance | |
| Current | |
| Insulator Material | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Screw Size | |
| Tape & Reel | |
| Torque | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

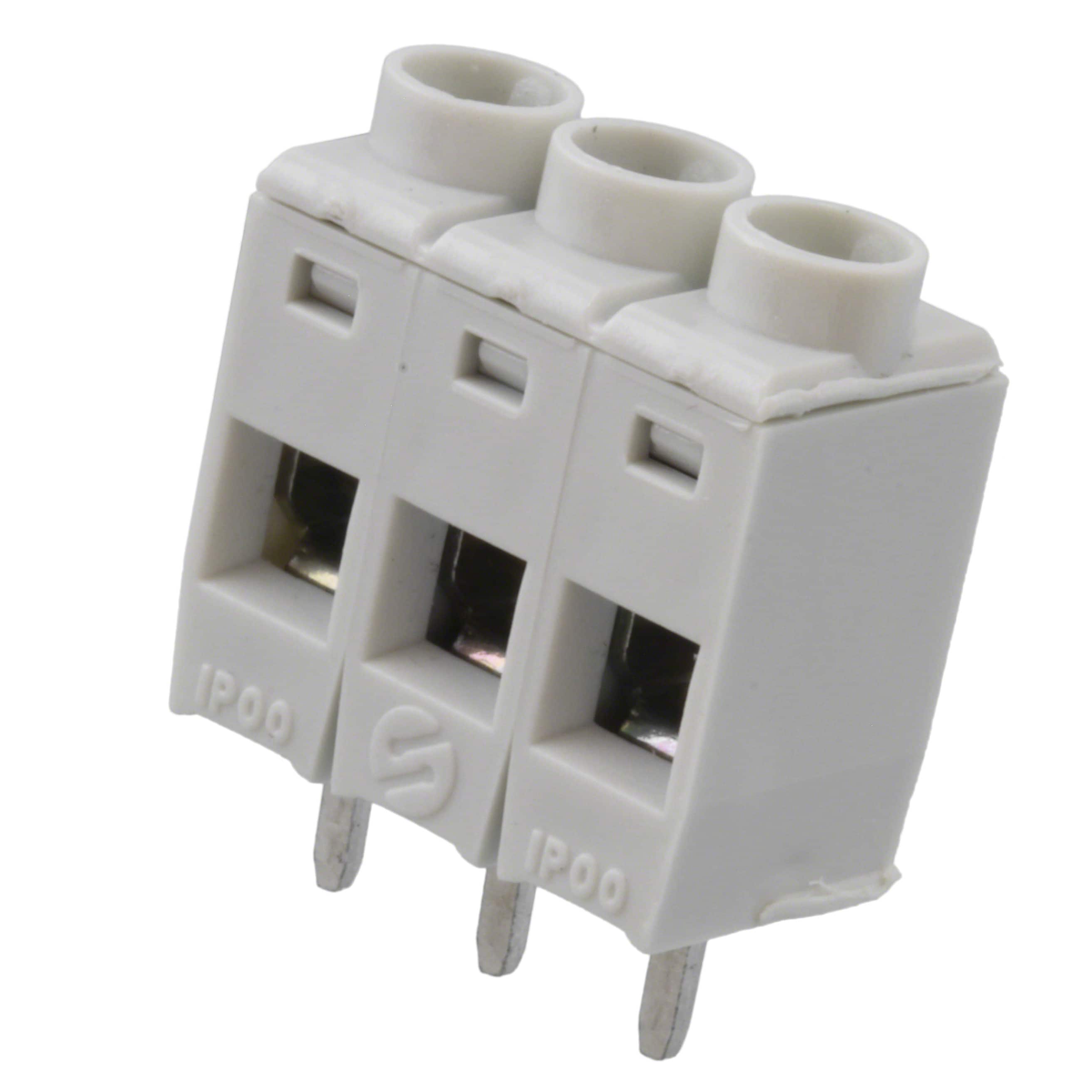

The Würth Elektronik 691131710003 is a 3 position, single level wire to board terminal block from the WR-TBL 1317 series. It features a 5.00mm pitch and a horizontal with board mating orientation, making it suitable for PCB applications where side entry wire connection is required.
Rated for 16A at 300V (UL) and 22A at 450V (VDE), this terminal block accepts solid and stranded wires from 30-12 AWG. The screw rising cage clamp termination ensures secure wire retention with a torque of 0.5 Nm and a wire strip length of 6 mm.
The insulator is made of gray polycarbonate (PC) with a UL94 V-0 flammability rating. The operating temperature range is -30°C to +120°C. Contact resistance is 20 mΩ maximum. The component is RoHS compliant and packaged in a box.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.07 | $2.07 |
| 10+ | $1.68 | $1.68 |
| 50+ | $1.40 | $1.40 |
| 100+ | $1.17 | $1.17 |
| 200+ | $1.06 | $1.06 |
| 600+ | $0.97 | $0.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.00 mm.
The current rating is 16 A (UL) and 22 A (VDE).
The working voltage is 300 VAC (UL) and 450 VAC (VDE).
It accepts solid and stranded wire from 30-12 AWG.
Through hole mounting.
-30°C to +120°C.
UL94 V-0.
