Mfr Part #:

691127700008B

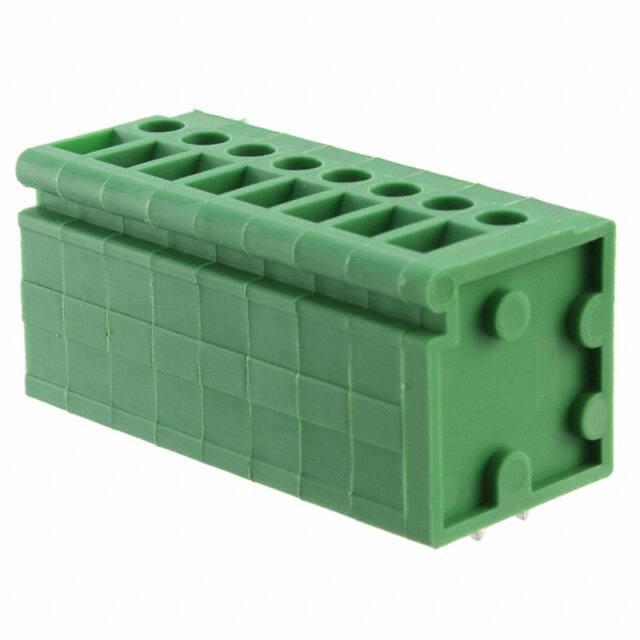

8-position wire-to-board terminal block with 5.00mm pitch and screw termination. Rated for 20A at 300V, through hole mounting, green PA66 insulator.

✓ Total Stock: 40 pcs

$ Price Range: $5.73 - $8.79

691127700008B Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	40 pcs On Request	40 pcs	On Request	5	On Request	On Request	On Request	On Request	On Request

691127700008B Description

Short technical summary and product information.

The Würth Elektronik 691127700008B is a 8-position wire-to-board terminal block from the 127B series. It features a 5.00mm pitch and screw-pressure clip wire termination for secure connections. The block is rated for 20A continuous current and 300VAC working voltage, with a withstanding voltage of 2.0kV.

Designed for vertical board entry, the terminal block accepts solid and stranded wires from 30 to 12 AWG (0.05-3.3 mm²). The wire strip length is 9mm, and the recommended torque is 0.45 Nm. The insulator is made of green PA66 with UL94 V-0 flammability rating, ensuring high reliability in demanding environments.

The through-hole mounting allows for robust PCB attachment. The contact pins are brass with tin-plated solder tails for excellent solderability. The terminal screws and wire guard are zinc-plated steel for corrosion resistance. The screw slot is Phillips cross type for easy installation.

This terminal block is RoHS compliant and lead-free. It carries cULus certification (E315414). Suitable for industrial control, power distribution, and building automation applications where reliable wire-to-board connections are required.

691127700008B Quick Information

Product Type: Terminal Block

Series: 127B

Canonical Name: Würth Elektronik 691127700008B Terminal Block, Wire to Board, 8 Positions, 5.00mm Pitch, Through Hole, Screw Termination

Subcategory: Screw Terminal Block

691127700008B Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free

691127700008B Estimated Pricing

Qty	Low	High
1+	$8.79	$8.79
10+	$7.88	$7.88
120+	$6.80	$6.80
280+	$6.08	$6.08
520+	$5.73	$5.73

Estimated market price range - modelled values for guidance only, not live distributor offers.

691127700008B Features

8-position wire-to-board terminal block.
5.00mm pitch with screw termination.
Rated for 20A continuous current and 300V.
UL94 V-0 flame rated PA66 insulator.
Accepts 12-30 AWG solid or stranded wire.

691127700008B Applications

Power supply and distribution boards.
Industrial control panels.
Building automation systems.
HVAC equipment wiring.
General PCB wire-to-board interconnections.

691127700008B FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this terminal block have?

8 positions.

What is the pitch of this terminal block?

5.00mm (0.197 inches).

What is the current rating?

20A.

What is the voltage rating?

300VAC.

What is the mounting type?

Through hole, vertical with board.

What wire gauge does it accept?

12-30 AWG solid or stranded.

What is the operating temperature range?

-40°C to 105°C.

Category	Wire to Board
Manufacturer Name	Würth Elektronik
Color	Green
Contact Resistance	20 mOhm max
Current	20 A
Current Rating	20 A
Insulator Material	PA 66
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature	-40°C to 105°C
Pitch	5.00mm (0.197")
Positions Per Level	8
SVHC Present	Not Present
Tape & Reel	Yes
Torque	0.45 Nm (4.0 Lb-In)
Voltage	300 V
Voltage Rating	300 V
Wire Gauge	12-30 AWG
Wire Termination	Screw - Pressure Clip
Withstanding Voltage	2.0 kV
