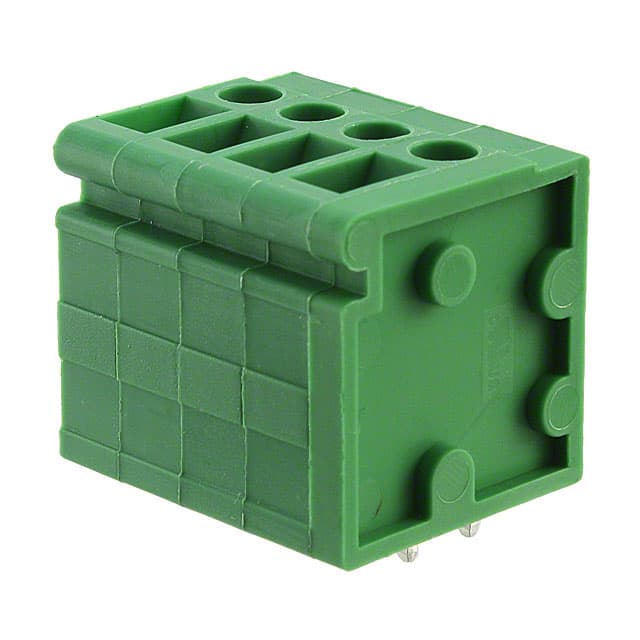

691127700004B Würth Elektronik 691127700004B is a 4 position, single level, 5.00mm pitch wire to board terminal block with screw pressure clip termination. Rated 20A at 300V, it accepts 12-30 AWG wire and operates from -40 to 105°C.
Mfr Part #:

691127700004B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 691127700004B is a 4 position, single level, 5.00mm pitch wire to board terminal block with screw pressure clip termination. Rated 20A at 300V, it accepts 12-30 AWG wire and operates from -40 to 105°C.
✓ Total Stock: 1,620 pcs
$ Price Range: $3.24 - $4.98

691127700004B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,620 pcs
On Request
1620 pcs On Request 10 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691127700004B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Plating
Contact Resistance
Current
Current Rating
Halogen Free
Industrial Grade
Insulator Material
Mating Orientation
Mounting Type
Number of Levels
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Tape & Reel
Torque
Voltage
Voltage Rating
Wire Gauge
Wire Termination
Withstanding Voltage
View Similar Products (0)

691127700004B Description

Short technical summary and product information.

The Würth Elektronik 691127700004B is a 4 position, single level wire to board terminal block from the 127B series. It features a 5.00mm pitch and a vertical with board mating orientation, making it suitable for PCB applications requiring a compact, reliable connection.



Electrical ratings include 20A current and 300V voltage, with a withstanding voltage of 2.0kV and maximum contact resistance of 20 mOhm. The terminal block accepts solid or stranded wire from 30 to 12 AWG (0.05-3.3 mm²) and uses a screw pressure clip termination with a recommended torque of 0.45 Nm and strip length of 9 mm.



Constructed with a green PA66 insulator rated UL94 V-0, brass tin-plated contact pins, and steel zinc plated terminal screws and wire guard, the part is designed for through hole mounting. It is RoHS compliant and lead free, with an operating temperature range of -40 to 105°C.

691127700004B Quick Information

Product Type: Wire to Board Terminal Block
Series: 69112770
Canonical Name: Würth Elektronik 691127700004B 4 Position 5.00mm Pitch Wire to Board Terminal Block
Subcategory: Wire to Board

691127700004B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

691127700004B Estimated Pricing

Qty Low High
1+ $4.98 $4.98
10+ $4.46 $4.46
50+ $3.85 $3.85
90+ $3.45 $3.45
540+ $3.24 $3.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

691127700004B Features

  • 4 positions, 5.00mm pitch, single level.
  • Rated 20A at 300V with 2.0kV withstanding voltage.
  • Accepts 12-30 AWG solid or stranded wire.
  • Screw pressure clip termination with 0.45 Nm torque.
  • Green PA66 insulator, UL94 V-0 flammability rating.

691127700004B Applications

  • PCB wire to board connections in industrial controls.
  • Power distribution in lighting and automation systems.
  • Reliable termination in HVAC and appliance electronics.
  • Compact vertical entry for space-constrained designs.

691127700004B FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 691127700004B have?

It has 4 positions in a single level.

What is the pitch of this terminal block?

The pitch is 5.00 mm.

What are the current and voltage ratings?

It is rated for 20 A and 300 V.

What wire sizes does it accept?

It accepts 12-30 AWG solid or stranded wire (0.05-3.3 mm²).

What is the mounting type?

Through hole mounting.

Is the 691127700004B RoHS compliant?

Yes, it is RoHS compliant and lead free.
