| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
640 pcs
|
640 pcs | On Request | 4 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Flammability Rating | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Screw Material | |
| Screw Slot Type | |
| Solid Wire Range | |
| Stranded Wire Range | |
| Tape & Reel | |
| Torque | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Strip Length | |
| Wire Termination | |
| Withstanding Voltage |

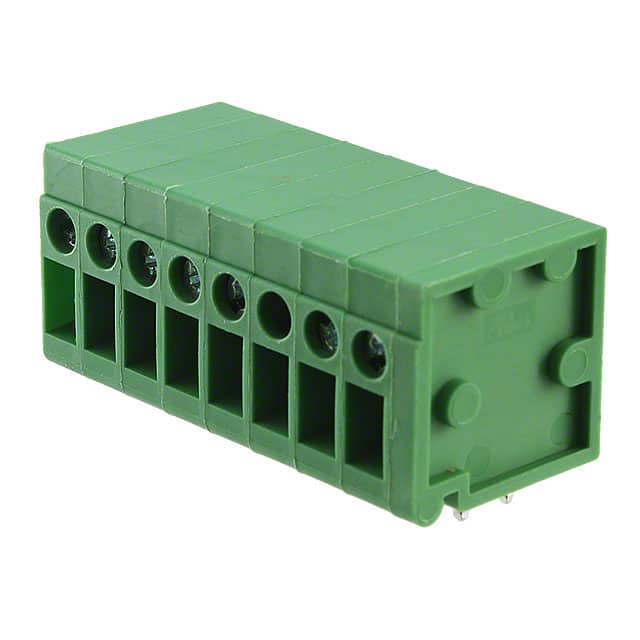

The Würth Elektronik 691126710008B is a wire to board terminal block from the 126B series. It features 8 positions in a single level with a 5.00mm pitch. The mounting type is through hole with a horizontal mating orientation relative to the board. Wire termination is via a screw pressure clip mechanism using a cross (Phillips) slot screw.
Electrical ratings include a current rating of 20A and a voltage rating of 300V. The withstanding voltage is 2.0kV and contact resistance is 20 mOhm max. The terminal block accepts solid or stranded wire from 30-12 AWG (0.05-3.3 mm²) with a strip length of 9mm. The recommended torque is 0.45 Nm.
The housing is made of green PA66 with a UL94 V-0 flammability rating. Contact pins are brass with tin plating, and the terminal screw is steel with zinc plating. The operating temperature range is -40°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.50 | $8.50 |
| 10+ | $7.61 | $7.61 |
| 120+ | $6.57 | $6.57 |
| 280+ | $5.88 | $5.88 |
| 520+ | $5.54 | $5.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in a single level.
5.00mm (0.197 inches).
20A and 300V.
12-30 AWG solid or stranded wire.
Through hole with horizontal mating orientation.
-40°C to 105°C.
Yes, it is RoHS3 compliant and lead free.
