| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Housing Material | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature Range | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Torque | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination | |
| Withstanding Voltage |

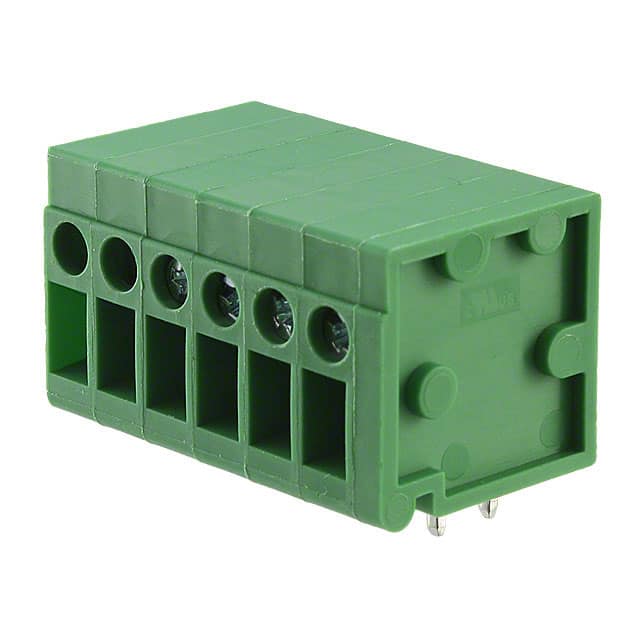

The Würth Elektronik 691126710006B is a 6-position wire-to-board terminal block from the Series 126B, designed with a 5.00mm pitch. It supports a single level layout and is rated for 20A continuous current with a working voltage of 300VAC. The terminal block uses a screw-pressure clip wire termination accommodating solid or stranded wires from 12 to 30 AWG, with a recommended strip length of 9mm and a tightening torque of 0.45 Nm.
Mechanical construction features a green polyamide (PA66) insulator with a UL94 V-0 flammability rating, brass contact pins with tin plating, and a steel wire guard. The component is through-hole mounted for reliable PCB attachment. Contact resistance is specified at 20 mOhm maximum, and the withstanding voltage is 2.0 kV.
Environmental compliance includes RoHS and lead-free status, with an operating temperature range from -40°C to 105°C. The terminal block is UL recognized under file number E315414. Packaging is in boxes suitable for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.03 | $7.03 |
| 10+ | $6.30 | $6.30 |
| 60+ | $5.44 | $5.44 |
| 120+ | $4.87 | $4.87 |
| 300+ | $4.58 | $4.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions in a single level.
The pitch is 5.00mm (0.197 inches).
The current rating is 20A.
The voltage rating is 300VAC.
The mounting type is through hole.
It accepts wire sizes from 12 to 30 AWG (solid or stranded).
