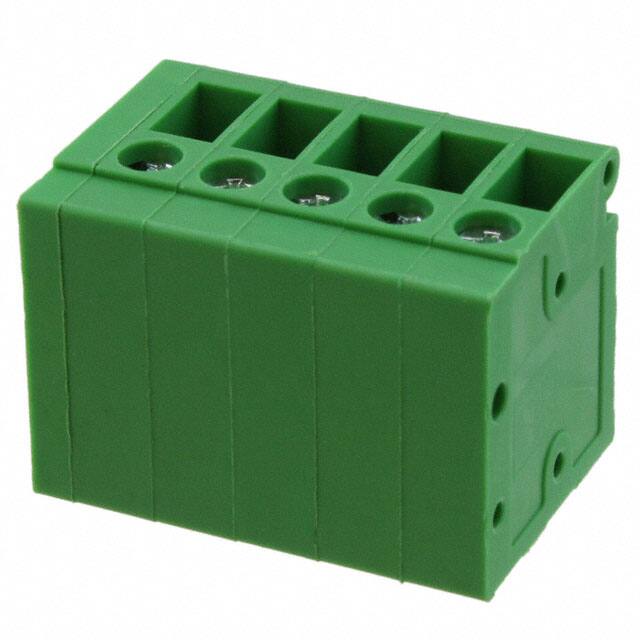

The Würth Elektronik 691126710005B is a 5-position, single-level wire to board terminal block from the 126B series. It features a 5.00mm pitch and a horizontal (side) entry orientation, making it suitable for PCB layouts where wire access from the side is required. The terminal block uses a screw pressure clip wire termination, accepting solid or stranded wire from 30 to 12 AWG with a 9mm strip length. The recommended torque is 4.0 Lb-In (0.45 Nm).
Electrically, the 691126710005B is rated for 20 A continuous current and 300 V working voltage, with a withstanding voltage of 2.0 kV and a maximum contact resistance of 20 mOhm. The housing is made of green PA 66 with a UL94 V-0 flammability rating. Contacts are brass with tin plating, and the terminal screw and wire guard are steel with zinc plating. The screw slot is Phillips (+).
This component is designed for through-hole mounting on PCBs and is packaged in a box. It is compliant with RoHS and lead-free requirements as stated in the datasheet. The 126B series includes multiple pole counts, with the 5-position version having a width of 27.50 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.71 | $5.71 |
| 10+ | $5.12 | $5.12 |
| 50+ | $4.42 | $4.42 |
| 70+ | $3.95 | $3.95 |
| 560+ | $3.72 | $3.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.00 mm (0.197 inches).
The current rating is 20 A and the voltage rating is 300 V.
It accepts solid and stranded wire from 30 to 12 AWG.
The operating temperature range is -40 to 105 °C.
Through hole mounting.
Screw - Pressure Clip.
The housing is PA 66 with a UL94 V-0 flammability rating.
