| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 15 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Tape & Reel | |
| Torque | |
| Voltage | |
| Wire Gauge | |
| Wire Termination | |
| Withstanding Voltage |

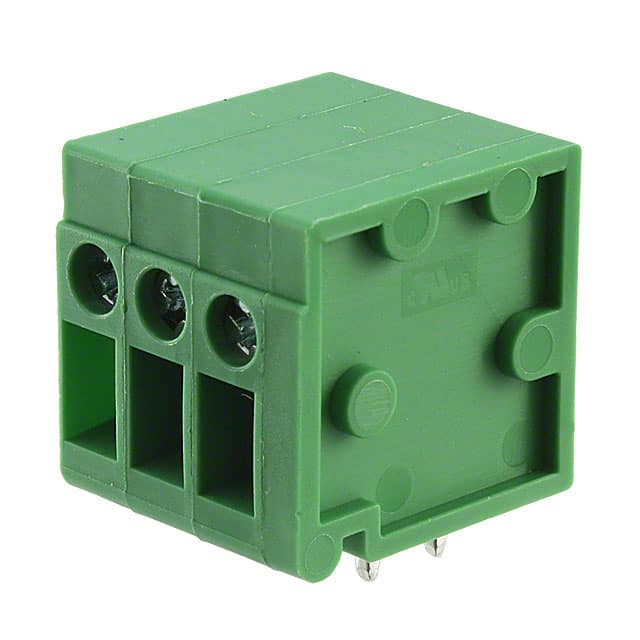

The Würth Elektronik 691126710003B is a 3-position wire to board terminal block from the 126B series, designed for reliable and secure wire connections in a compact form factor. It features a 5.00mm pitch and a horizontal mating orientation with the board, making it suitable for space-constrained PCB layouts.
This terminal block is rated for 20A current and 300V voltage, with a withstanding voltage of 2.0kV and a contact resistance of 20 mOhm. It accepts wire gauges from 12 to 30 AWG (solid or stranded) and requires a wire strip length of 9mm. The screw pressure clip termination ensures a robust connection with a recommended torque of 0.45 N·m.
Constructed with a green PA66 insulator (UL94 V-0 flammability rating) and brass contacts with tin plating, the 691126710003B is RoHS compliant and operates over a temperature range of -40°C to 105°C. It is packaged in a box and is suitable for a variety of industrial and commercial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.51 | $3.51 |
| 10+ | $3.15 | $3.15 |
| 50+ | $2.72 | $2.72 |
| 100+ | $2.43 | $2.43 |
| 500+ | $2.29 | $2.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions.
The pitch is 5.00mm.
It is rated for 20A and 300V.
It uses through hole mounting.
It accepts 12 to 30 AWG wire.
It operates from -40°C to 105°C.
Yes, it is RoHS compliant.
