| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Failure Rate | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch - Mating | |
| Rated Voltage | |
| SVHC Present | |
| Style | |
| Termination Style |

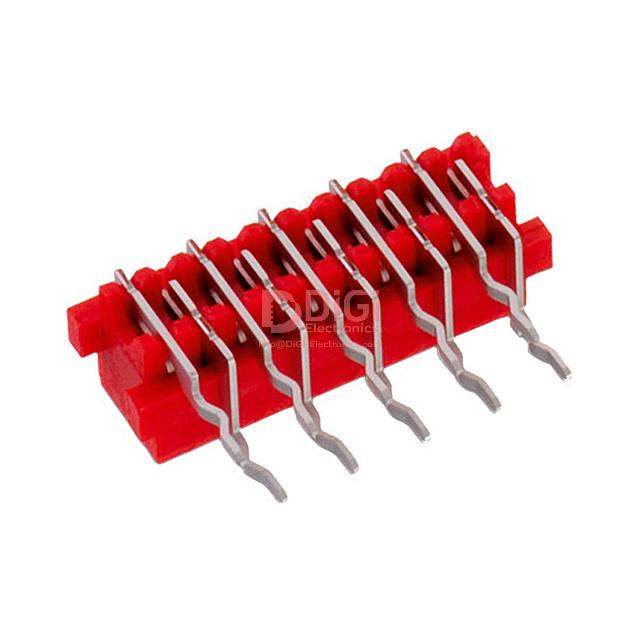

The 690368181272 is a 12-position receptacle connector from Würth Elektronik's WR-MM series. It has a 2.54mm pitch and dual rows of forked contacts, making it suitable for board-to-board or cable connections. The connector uses a through-hole, right-angle mounting style with kinked pin solder termination. The contacts are made of phosphor bronze with tin plating on both the mating and pin ends. The housing is made of red polybutylene terephthalate (PBT) with an insulation height of 5.80mm and a contact pin length of 3.10mm.
The connector is rated for 1.5A per contact at 100VAC and operates over a temperature range of -40°C to 105°C. It has a UL94 V-0 flammability rating for the insulation material. The package is a tube, and the connector uses a push-pull fastener type. This design is well-suited for applications requiring a compact, reliable interconnect in industrial or consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100VAC.
-40°C to 105°C.
Tube.
1.5A per contact.
2.54 mm.
12 positions in 2 rows.
Polybutylene Terephthalate (PBT).
