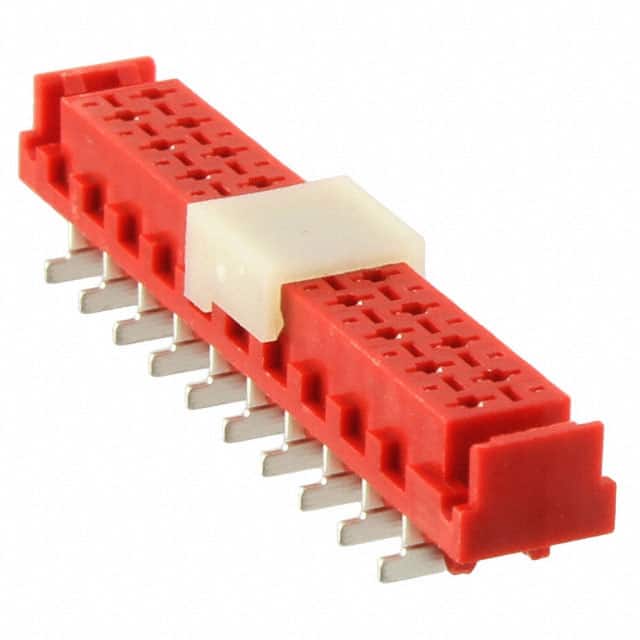

690367292076 This 20-position surface mount receptacle from Würth Elektronik features a 2.54mm pitch, latch lock fastening, and tin-plated phosphor bronze contacts. Rated for 1.5A per contact and 100VAC operation.
Mfr Part #:

690367292076

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This 20-position surface mount receptacle from Würth Elektronik features a 2.54mm pitch, latch lock fastening, and tin-plated phosphor bronze contacts. Rated for 1.5A per contact and 100VAC operation.
✓ Total Stock: 598 pcs
$ Price Range: $2.05 - $2.53

690367292076 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
522 pcs
On Request
522 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
76 pcs
On Request
76 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

690367292076 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Plating
Contact Resistance
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Housing Material
Insulation Color
Insulation Height
Insulation Resistance
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Operating Temperature Range
Pitch
Row Spacing
SVHC Present
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

690367292076 Description

Short technical summary and product information.

The Würth Elektronik 690367292076 is a 20-position surface mount receptacle designed for board-to-board or cable applications. It features a 2.54mm pitch and 2 rows with 1.50mm row spacing, housed in a red PA6T insulator with a latch lock fastening mechanism.



The contacts are stamped from phosphor bronze with a matt tin over nickel plating, rated for 25 mating cycles. The connector is pick-and-place compatible and packaged in tape and reel.



Electrically, it is rated for 1.5A per contact and 100VAC, with an insulation resistance greater than 1000 MOhm and contact resistance of 10 mOhm maximum. Dielectric withstanding voltage is 500 VAC.



The operating temperature range is -40°C to 105°C. The housing material is UL94 V-0 rated. The connector is RoHS compliant and lead-free.

690367292076 Quick Information

Product Type: Receptacle
Series: WR-MM
Canonical Name: Würth Elektronik 690367292076 20 Position 2.54mm Pitch Surface Mount Receptacle with Latch Lock
Subcategory: Headers, Receptacles, Female Sockets

690367292076 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

690367292076 Estimated Pricing

Qty Low High
1+ $2.53 $2.53
10+ $2.48 $2.48
50+ $2.38 $2.38
100+ $2.29 $2.29
500+ $2.05 $2.05
800+ $2.05 $2.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

690367292076 Features

  • 20 positions in 2 rows.
  • 2.54mm pitch with latch lock.
  • Surface mount with pick-and-place capability.
  • Rated 1.5A per contact at 100VAC.
  • RoHS compliant and lead-free.

690367292076 Applications

  • Suitable for board-to-board connections.
  • Used in cable-to-board applications.
  • Ideal for compact electronic assemblies.
  • Supports automated pick-and-place assembly.

690367292076 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

20 positions.

What is the pitch of this connector?

2.54mm (0.100").

What is the current rating per contact?

1.5A per contact.

What is the voltage rating?

100 VAC.

What is the mounting type?

Surface Mount.

What is the operating temperature range?

-40°C to 105°C.

Is this connector RoHS compliant?

Yes, RoHS compliant and lead-free.
