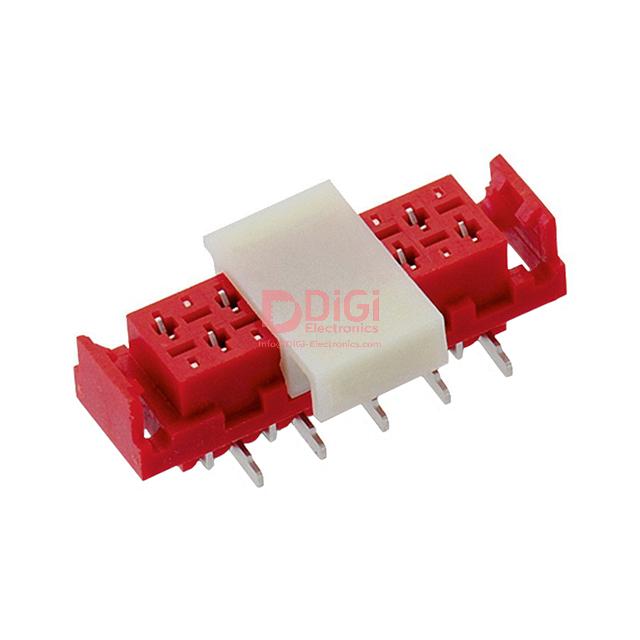

690367291676 The Würth Elektronik 690367291676 is a WR-MM series receptacle connector featuring 16 positions and a 2.54mm pitch. It is designed for surface mount applications.
Mfr Part #:

690367291676

Available from 1 distributors
Mfr Name: WE
WE
The Würth Elektronik 690367291676 is a WR-MM series receptacle connector featuring 16 positions and a 2.54mm pitch. It is designed for surface mount applications.
✓ Total Stock: 332 pcs
$ Price Range: $0.39

690367291676 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
332 pcs
On Request
332 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

690367291676 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish - Mating
Contact Type
Fastening Type
Mounting Type
Number of Positions
Number of Rows
Pitch - Mating
Termination Style
View Similar Products (0)

690367291676 Description

Short technical summary and product information.

This Würth Elektronik 690367291676 is a WR-MM series female SMT connector. It offers 16 positions with a mating pitch of 0.100 inches (2.54mm) and is designed for board-to-board or cable connections.



The connector features a surface mount termination style and a solder fastening type with a latch lock mechanism. The contact finish for mating is tin. It is supplied in tape and reel packaging.



This component is suitable for various electronic applications requiring reliable connections. Its surface mount design facilitates automated assembly processes.

690367291676 Quick Information

Product Type: Receptacle Connector
Series: WR-MM
Canonical Name: Würth Elektronik WR-MM 16 Position Receptacle Connector
Subcategory: Headers, Receptacles, Female Sockets

690367291676 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

690367291676 Estimated Pricing

Qty Low High
1+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

690367291676 Features

  • 16 position WR-MM series receptacle connector.
  • 0.100 inch (2.54mm) mating pitch.
  • Surface mount termination style.
  • Tin contact finish for reliable mating.
  • Latch lock fastening for secure connection.

690367291676 Applications

  • Used for board-to-board interconnections
  • Suitable for cable-to-board wiring harnesses
  • Ideal for latch-lock secure connections
  • Common in industrial control modules

690367291676 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

16

What is the pitch?

2.54 mm

What is the mounting type?

Surface Mount

What is the termination style?

Solder

What is the fastening type?

Latch Lock

What is the contact finish on the mating side?

Tin

How many rows does it have?

2
