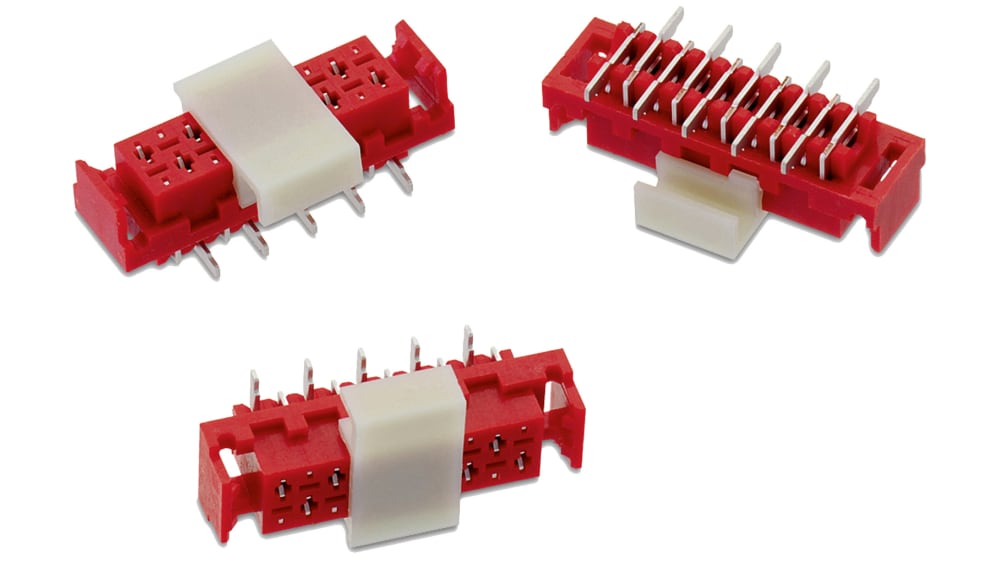

690367291476 The 690367291476 is a 14-position, 2-row, 2.54mm pitch surface mount female receptacle from Würth Elektronik's WR-MM series. It features a latch lock fastening and tin-plated phosphor bronze contacts.
Mfr Part #:

690367291476

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The 690367291476 is a 14-position, 2-row, 2.54mm pitch surface mount female receptacle from Würth Elektronik's WR-MM series. It features a latch lock fastening and tin-plated phosphor bronze contacts.
✓ Total Stock: 6 pcs
$ Price Range: $1.19 - $1.67

690367291476 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

690367291476 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Material
Contact Plating
Contact Resistance
Contact Type
Current Rating (Amps)
Durability
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Resistance
Insulator Color
Insulator Material
Length
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Storage Temperature
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
Withstanding Voltage
Working Voltage
View Similar Products (0)

690367291476 Description

Short technical summary and product information.

This is a WR-MM series female SMT connector from Würth Elektronik, designed for board-to-board or cable applications. It has 14 positions in 2 rows with a 2.54mm pitch.



Key specifications: Rated for 1.5A per contact, 100V AC voltage rating (with 250V AC working voltage), contact resistance 10 mΩ max, insulation resistance 1000 MΩ min. Operating temperature -40°C to 105°C. Material flammability UL94 V-0.



Mechanical features: Surface mount with solder termination. Latch lock fastening for secure mating. Forked contact type with tin finish over nickel on phosphor bronze. Insulator is red PA6T. Pick and place feature for automated assembly. Durability of 25 mating cycles.



Dimensions: Length 22.38mm, insulation height 5.25mm. Packaging: Tape and reel (standard package quantity not verified). RoHS and REACH compliant.

690367291476 Quick Information

Product Type: Rectangular Connector - Header, Receptacle, Female Socket
Series: WR-MM
Canonical Name: WR-MM Female SMT Connector with Latch Lock, 14 Positions, 2 Rows, 2.54mm Pitch, Surface Mount
Subcategory: Female Socket

690367291476 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Conform or declared

690367291476 Estimated Pricing

Qty Low High
1+ $1.67 $1.67
10+ $1.60 $1.60
50+ $1.54 $1.54
100+ $1.48 $1.48
500+ $1.33 $1.33
800+ $1.19 $1.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

690367291476 Features

  • 14 positions in 2 rows with 2.54mm pitch.
  • Surface mount with latch lock fastening.
  • Rated for 1.5A per contact at 100V AC.
  • Tin-plated phosphor bronze forked contacts.
  • Operating temperature range -40°C to 105°C.

690367291476 Applications

  • Ideal for board-to-board interconnections.
  • Suitable for cable-to-board applications.
  • Used in industrial and consumer electronics.
  • Pick and place compatible for automated assembly.

690367291476 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 690367291476 have?

14 positions in 2 rows.

What is the pitch of this connector?

2.54mm.

What is the current rating per contact?

1.5A per contact.

What is the voltage rating?

100V AC maximum, with a working voltage of 250V AC.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-40°C to 105°C.

Is this connector RoHS compliant?

Yes, RoHS3 compliant per 2011/65/EU and 2015/863.
