| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
313 pcs
|
313 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

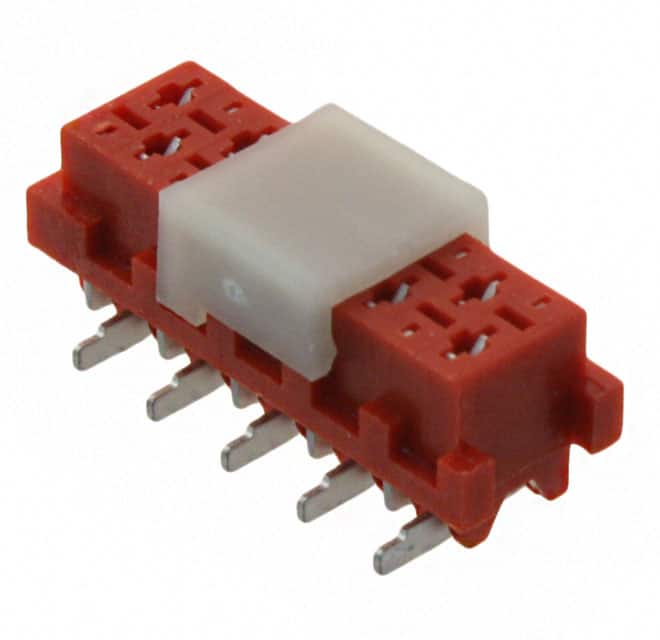

The Würth Elektronik 690367281076 is a 10-position surface mount receptacle belonging to the WR-MM MiniModule connector series. Designed for board-to-board or cable applications, this connector features a 2.54mm (0.100") pitch and dual-row configuration with all positions loaded. The contact type is forked with tin plating, providing reliable electrical connections. The red insulation housing has a height of 5.25mm and includes a pick-and-place feature for automated assembly. The push-pull fastening type ensures secure mating. Electrical ratings include 100VAC voltage and 1.5A per contact current. The operating temperature range is -40°C to 105°C, and the material flammability rating is UL94 V-0. This connector is compatible with surface mount soldering and is available in tape and reel packaging. The WR-MM series is designed for compact and low-profile IDC connections for ribbon cable, offering space savings and fretting corrosion resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.26 | $1.26 |
| 10+ | $1.24 | $1.24 |
| 50+ | $1.19 | $1.19 |
| 100+ | $1.14 | $1.14 |
| 500+ | $1.02 | $1.02 |
| 800+ | $1.02 | $1.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions, with all positions loaded.
2.54mm (0.100")
1.5A per contact.
100VAC.
Surface mount (SMD) with solder termination.
-40°C to 105°C.
Tin plating.
