| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

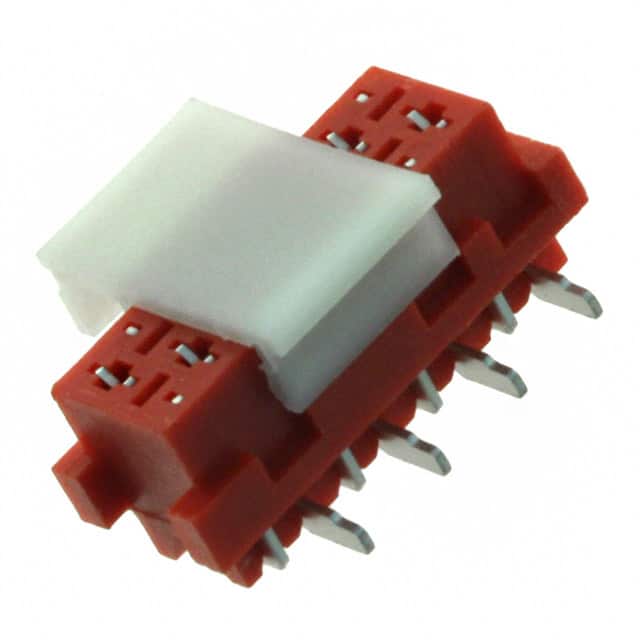

The Würth Elektronik 690367280876 is a miniature female socket receptacle from the WR-MM series, designed for compact board-to-board or cable connections. It features 8 positions arranged in 2 rows with a 2.54mm pitch and 1.50mm row spacing. The connector uses a forked contact style with tin-plated contacts and a push-pull fastening mechanism.
This SMT-mounted component supports solder termination and is rated for 1.5A per contact at 100VAC. It operates over a temperature range of -40°C to 105°C and features a red insulation body rated UL94 V-0. The pick-and-place feature facilitates automated assembly.
With its low profile and surface-mount design, it is suited for space-constrained applications requiring reliable, low-voltage signal connections. The WR-MM series supports both wire-to-board and board-to-board configurations, offering design flexibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
| 10+ | $1.08 | $1.08 |
| 50+ | $1.04 | $1.04 |
| 100+ | $1.00 | $1.00 |
| 500+ | $0.90 | $0.90 |
| 800+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions, all loaded, arranged in 2 rows.
2.54mm (0.100 in) pitch with 1.50mm (0.059 in) row spacing.
1.5A per contact at 100VAC.
Surface mount (SMT) with solder termination.
-40°C to 105°C.
UL94 V-0.
