690367280676 6 position receptacle with forked tin contacts, 2.54mm pitch, surface mount, rated 1.5A per contact at 100VAC.
Mfr Part #:

690367280676

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
6 position receptacle with forked tin contacts, 2.54mm pitch, surface mount, rated 1.5A per contact at 100VAC.
✓ Total Stock: 775 pcs
$ Price Range: $0.77 - $0.95

690367280676 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
575 pcs
On Request
575 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request 22+/15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

690367280676 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

690367280676 Description

Short technical summary and product information.

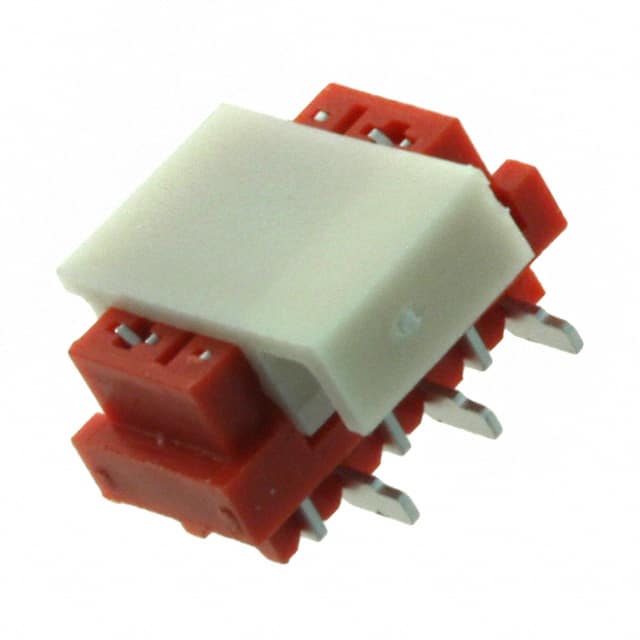

The Würth Elektronik 690367280676 is a 6-position receptacle from the WR-MM MiniModule series. It features forked tin-plated contacts on a 2.54mm pitch with a 2-row configuration and 1.50mm row spacing. The connector is surface mount with solder termination and a push-pull fastening type.



Designed for board-to-board or cable-to-board applications, this receptacle includes a pick-and-place feature for automated assembly. The red insulation has a height of 5.25mm and is rated UL94 V-0 for flammability. Electrical ratings are 1.5A per contact and 100VAC.



The operating temperature range is -40°C to 105°C. All 6 positions are loaded. The connector is RoHS3 compliant and REACH unaffected, with MSL 1 unlimited.

690367280676 Quick Information

Product Type: Rectangular Connector - Receptacle
Series: MiniModule
Canonical Name: WR-MM MiniModule Female SMT Connector, 6 Position, 2.54mm Pitch, Tin, SMD
Subcategory: Female Sockets

690367280676 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

690367280676 Estimated Pricing

Qty Low High
1+ $0.95 $0.95
10+ $0.93 $0.93
50+ $0.90 $0.90
100+ $0.86 $0.86
500+ $0.77 $0.77
800+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

690367280676 Features

  • 6 position receptacle with 2.54mm pitch.
  • Tin plated forked contacts for reliable connection.
  • Surface mount with solder termination.
  • Rated 1.5A per contact at 100VAC.
  • Pick and place compatible for automated assembly.

690367280676 Applications

  • Board-to-board connections in compact designs.
  • Cable-to-board interfaces for ribbon cable.
  • Automated pick-and-place assembly lines.
  • Low profile interconnects in space-constrained devices.

690367280676 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

6 positions, all loaded, in a 2-row configuration.

What is the pitch of this receptacle?

2.54mm (0.100") with a row spacing of 1.50mm (0.059").

What is the current and voltage rating?

1.5A per contact and 100VAC.

What mounting type does this connector use?

Surface mount with solder termination.

What is the operating temperature range?

-40°C to 105°C.

What is the insulation material flammability rating?

UL94 V-0.

What is the contact finish?

Tin.
