| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

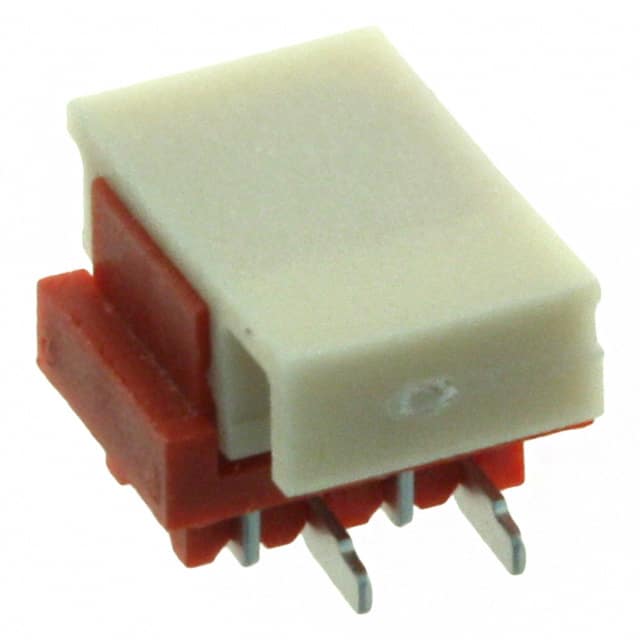

The Würth Elektronik 690367280476 is a 4-position receptacle from the WR-MM MiniModule connector series. It features a 2.54mm pitch with 2 rows and a row spacing of 1.50mm. The connector is surface mount with solder termination and a push-pull fastening mechanism. Contacts are forked type with tin plating. The insulation is red with a height of 5.25mm, and the overall dimensions are 9.68mm length, 3.81mm width, and 5.61mm height.
Electrical ratings include 1.5A per contact and 100VAC. The operating temperature range is -40°C to 105°C. The housing material meets UL94 V-0 flammability rating. The connector is designed for board-to-board or cable connections and includes a pick and place feature for automated assembly.
The part is RoHS3 compliant and lead free as verified by the datasheet. It is suitable for compact and low-profile applications requiring reliable interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.63 | $0.63 |
| 10+ | $0.62 | $0.62 |
| 50+ | $0.60 | $0.60 |
| 100+ | $0.57 | $0.57 |
| 500+ | $0.51 | $0.51 |
| 800+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm.
1.5A per contact.
100VAC.
Surface mount.
-40°C to 105°C.
Yes, RoHS3 compliant and lead free.
