Mfr Part #:

690357281276

Name: 690357281276
Brand: Würth Elektronik
SKU: 690357281276

Mfr Name: Würth Elektronik

Description:

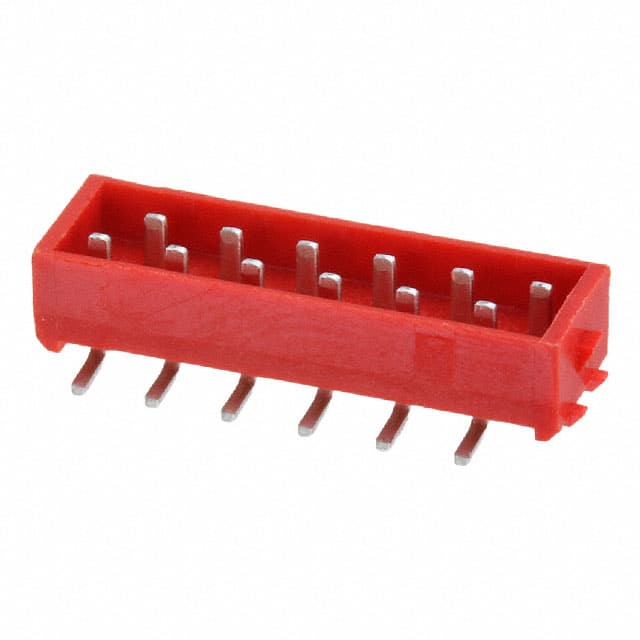

CONN HEADER SMD 12POS 2.54MM

Stock on Request

690357281276 Description

Short technical summary and product information.

CONN HEADER SMD 12POS 2.54MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Würth Elektronik
Connector Type	Header
Contact Finish	Tin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	1.5A per Contact
Fastening Type	Locking Ramp
Features	Pick and Place
Insulation Color	Red
Insulation Height	0.142" (3.60mm)
Insulation Material	Polyamide (PA6T), Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.100" (2.54mm)
Row Spacing	0.059" (1.50mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board
Termination	Solder
Voltage Rating	100V
