| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Plating Thickness (Minimum) | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Gender | |
| Housing Color | |
| Housing Material | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shell Material | |
| Shell Plating | |
| Shell Plating Thickness | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Tolerance | |
| USB Standard |

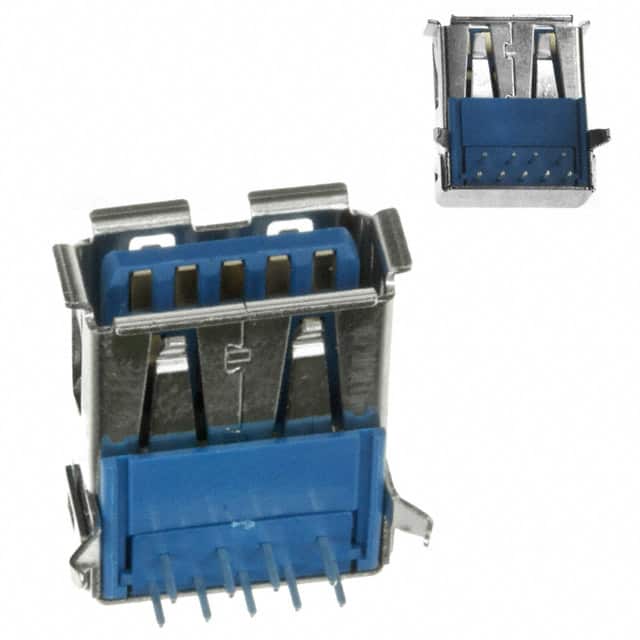

The 690-009-521-013 is a USB-A (Type-A) receptacle connector from Edac, designed for USB 3.2 Gen 1 (also known as USB 3.0/3.1 Gen 1) data transfer applications. It features 9 contacts in a single port, with a right angle through hole mounting style for secure attachment to PCBs. The connector is unshielded and includes a board lock feature for additional mechanical stability.
Key specifications include a current rating of 1.8 A, an operating temperature range of -30°C to 80°C, and a mating cycle durability of 1500 cycles. The housing is made of PA9T+30%GF (glass-filled nylon) in blue color, with a UL94 V-0 flammability rating. Contacts and shell are made of copper alloy, with selective gold plating on contacts and nickel plating on the shell. The connector is suitable for applications requiring reliable USB connectivity in industrial, consumer electronics, and computer peripheral equipment.
| Qty | Low | High |
|---|---|---|
| 150+ | $1.13 | $1.13 |
| 450+ | $1.04 | $1.04 |
| 900+ | $0.94 | $0.94 |
| 2,400+ | $0.88 | $0.88 |
| 4,950+ | $0.85 | $0.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 9 contacts.
The current rating is 1.8 A.
Through Hole, Right Angle.
No, it is unshielded.
USB 3.2 Gen 1 (also known as USB 3.0/3.1 Gen 1).
1500 cycles.
-30°C to 80°C.
