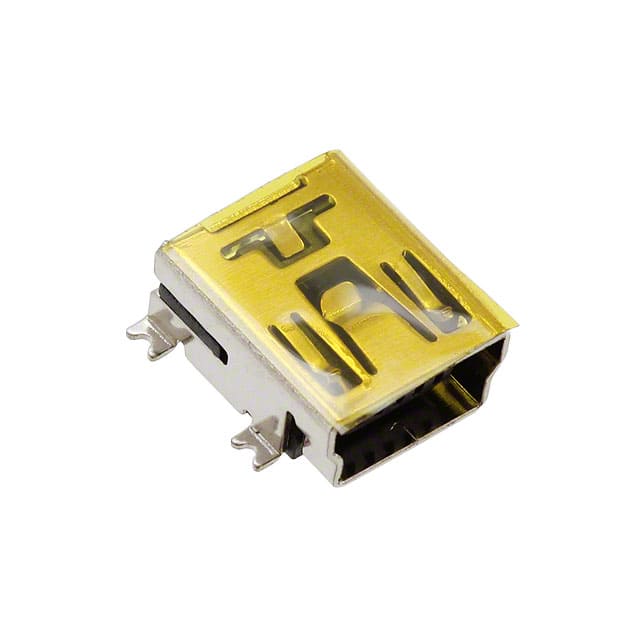

The Edac 690-005-299-043 is a USB 2.0 Mini B receptacle connector designed for surface mount right angle assembly. It features 5 contacts with solder termination and a current rating of 1 A. The connector includes board guide and solder retention features for reliable placement during manufacturing.
This unshielded receptacle supports 1500 mating cycles and operates over a temperature range of -30°C to 80°C. The horizontal mounting orientation makes it suitable for compact designs where space is limited.
The connector is RoHS3 compliant and has an MSL of 1 (unlimited) and is REACH unaffected. It is intended for use in applications requiring a standard USB 2.0 Mini B interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.69 | $0.69 |
| 10+ | $0.60 | $0.60 |
| 25+ | $0.55 | $0.55 |
| 100+ | $0.50 | $0.50 |
| 250+ | $0.45 | $0.45 |
| 1,000+ | $0.37 | $0.37 |
| 2,000+ | $0.34 | $0.34 |
| 5,000+ | $0.33 | $0.33 |
| 10,000+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1 A.
Surface mount, right angle.
1500 mating cycles.
-30°C to 80°C.
Yes, it is RoHS3 compliant as verified by the datasheet.
