| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Termination |

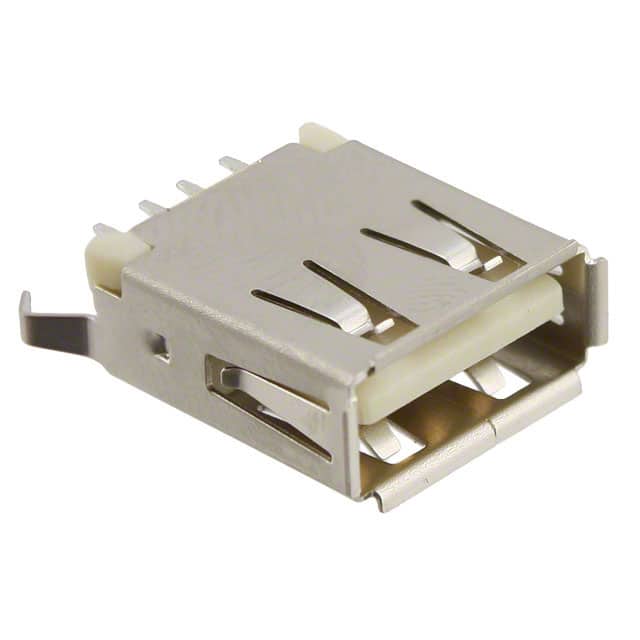

The Edac 690-004-660-013 is a USB-A (USB Type-A) receptacle connector compliant with USB 2.0 specifications. It features 4 contacts in a single port configuration, designed for through hole vertical mounting with solder termination. The connector is unshielded and includes a board lock feature for secure attachment to the PCB.
Mechanical specifications include a mating cycle rating of 1500 cycles, ensuring reliable repeated use. The operating temperature range spans -55°C to 85°C, suitable for a wide variety of environments. The connector is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited), though these compliance statuses are unverified.
This connector is appropriate for data transfer applications in consumer electronics, industrial control, and computer peripherals where USB 2.0 Type-A interfaces are required. The vertical mounting orientation simplifies PCB layout in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
| 10+ | $1.00 | $1.00 |
| 25+ | $0.89 | $0.89 |
| 100+ | $0.85 | $0.85 |
| 250+ | $0.79 | $0.79 |
| 500+ | $0.76 | $0.76 |
| 1,000+ | $0.74 | $0.74 |
| 2,500+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 contacts in a single port.
Through hole vertical mounting with solder termination.
No, it is unshielded.
USB 2.0.
-55°C to 85°C.
1500 cycles.
Yes, it includes a board lock.
