| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Type | |
| Contact Plating | |
| Current Rating | |
| Flammability Rating | |
| Halogen Free | |
| Insulation Material | |
| Length | |
| Mating Cycles | |
| Number of Conductors | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| UL Certification | |
| Working Voltage |

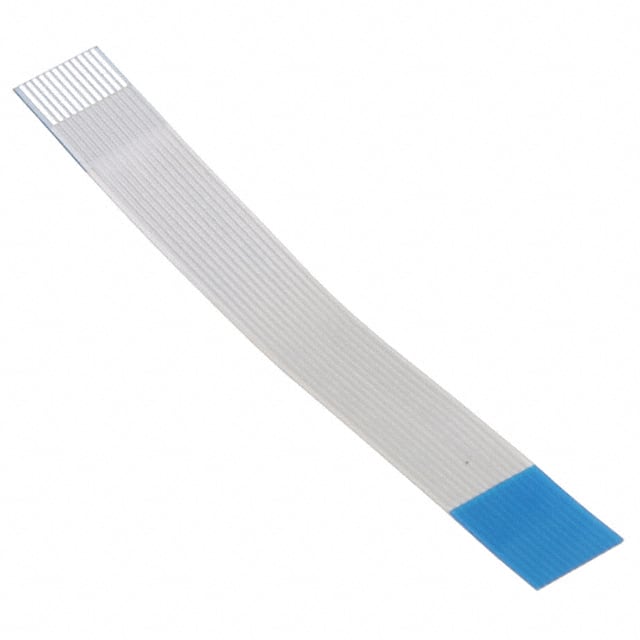

This FFC cable from Würth Elektronik features 12 conductors on a 0.50mm pitch with a length of 50mm. The termination style has contacts on top on one side and bottom on the other, with backers on both sides for secure connection. Contacts are tin plated over 50u” nickel, and the insulation is PET.
Electrical ratings include a current rating of 1A and a working voltage of 125V. The operating temperature range is -25°C to +85°C, with a minimum of 20 mating cycles. The cable is rated UL 20706 and certified under UL file E328849. Flammability rating is UL Subject 758.
Designed for use with 0.50mm pitch ZIF connectors, this cable is suitable for applications requiring flexible, reliable interconnections. The cable is packaged on tape and reel for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.28 | $3.28 |
| 10+ | $3.22 | $3.22 |
| 50+ | $2.96 | $2.96 |
| 100+ | $2.75 | $2.75 |
| 250+ | $2.53 | $2.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The working voltage is 125V.
The operating temperature range is -25°C to +85°C.
The cable is packaged in Tape and Reel.
Yes, the datasheet states 'Lead Free and RoHS'. However, this has not been verified with an official certificate.
The current rating is 1A.
12 conductors.
The pitch is 0.50mm.
