Mfr Part #:

687308124422

8-position FPC connector with 0.5mm pitch, vertical SMT, ZIF slide lock, rated for 1A and 125V. Operating temperature -25°C to 85°C.

✓ Total Stock: 393 pcs

$ Price Range: $1.17 - $1.75

687308124422 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	393 pcs On Request	393 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

687308124422 Description

Short technical summary and product information.

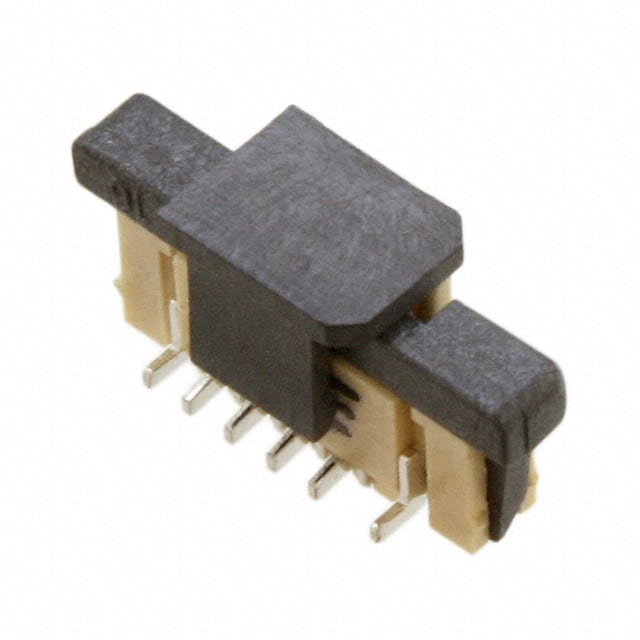

The Würth Elektronik 687308124422 is an 8-position FPC connector from the WR-FPC series, featuring a 0.5mm pitch and vertical surface mount orientation. It utilizes a Zero Insertion Force (ZIF) mechanism with a slide lock for secure cable retention, supporting FFC cables with a thickness of 0.29mm to 0.34mm and a tapered end type. The contacts are made of phosphor bronze with a tin plating (100u" tin over 50u" Ni), rated for 1A current and 125V working voltage (per datasheet). The housing and actuator are constructed from Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, ensuring reliability in demanding environments. The connector operates over a temperature range of -25°C to 85°C and is rated for 25 mating cycles. It is packaged in tape and reel for automated assembly. The component is RoHS3 compliant and lead-free, with UL certification (E323964). The height above board is 4.30mm, making it suitable for compact designs.

687308124422 Quick Information

Product Type: FPC Connector

Series: WR-FPC

Canonical Name: 8 Position FPC Connector, Vertical, 0.5mm Pitch, Surface Mount, ZIF

Subcategory: ZIF Connector

687308124422 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free

687308124422 Estimated Pricing

Qty	Low	High
1+	$1.75	$1.75
10+	$1.61	$1.61
50+	$1.49	$1.49
100+	$1.29	$1.29
500+	$1.26	$1.26
1,000+	$1.17	$1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

687308124422 Features

8 positions with 0.5mm pitch spacing.
Vertical surface mount ZIF connector.
Slide lock for secure cable retention.
Rated for 1A current and 125V.
Tin-plated phosphor bronze contacts.

687308124422 Applications

Ideal for compact electronic devices.
Used in consumer electronics interconnects.
Suitable for automotive control modules.
Applications requiring flexible circuit connections.
Where space-constrained vertical mating is needed.

687308124422 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this connector have?

8 positions.

What is the pitch of this connector?

0.50mm (0.020").

What is the current rating?

1A.

What is the voltage rating?

125V (from datasheet).

What is the mounting type?

Surface Mount.

What is the operating temperature range?

-25°C to 85°C.

What is the connector type?

FPC, ZIF (Zero Insertion Force) with slide lock.

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Würth Elektronik
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
Contact Plating	100u" Tin over 50u" Ni
Current Rating	1A
FFC, FCB Thickness	0.29mm ~ 0.34mm
Features	Zero Insertion Force (ZIF)
Flat Flex Type	FPC
Height Above Board	0.169" (4.30mm)
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	25 Mating Cycles
Mounting Type	Surface Mount
Number of Positions	8
Operating Temperature	-25°C ~ 85°C
Pitch	0.50mm (0.020")
SVHC Present	Not Present
Tape & Reel	Yes
Termination	Solder
Voltage Rating	50V
