| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Working Voltage |

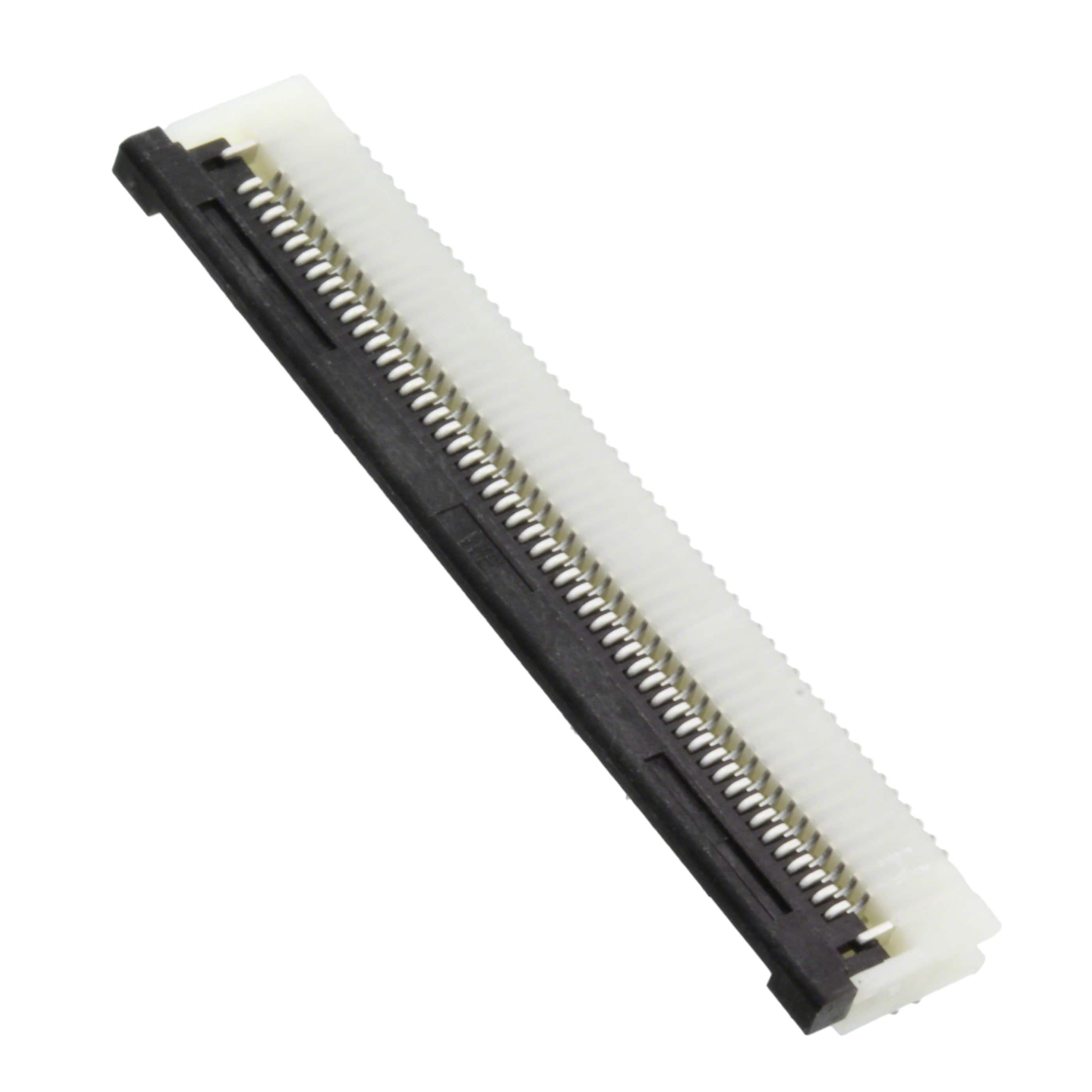

The 687150149022 is a 50-position FFC/FPC connector from Würth Elektronik, part of the WR-FPC series. It features a 0.5mm pitch and a right-angle surface mount configuration with bottom contact design. The connector utilizes a zero insertion force (ZIF) flip lock mechanism for easy cable insertion and secure retention. Solder retention features enhance reliability during soldering.
Electrical ratings include a nominal current of 1A and a voltage rating of 50V, with a working voltage of 125V. The operating temperature range is -40°C to 105°C. The housing is made of Polyamide (PA6T) with a UL94 V-0 flammability rating, and the contacts are Phosphor Bronze with Tin plating over 50u" Nickel. The connector is rated for at least 20 mating cycles.
Packaged in tape and reel, this connector is suitable for automated assembly processes. It is RoHS compliant and lead-free. The compact design makes it ideal for applications requiring space-efficient connections in consumer electronics, displays, and automotive modules.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.76 | $2.76 |
| 50+ | $2.62 | $2.62 |
| 100+ | $2.44 | $2.44 |
| 500+ | $2.25 | $2.25 |
| 1,000+ | $1.97 | $1.97 |
| 2,000+ | $1.97 | $1.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
0.50mm.
1A nominal.
50V nominal (working voltage 125V).
Surface mount, right angle.
-40°C to 105°C.
Housing: Polyamide (PA6T), Nylon 6T; Contact: Phosphor Bronze with Tin plating; Actuator: Polyamide (PA6T).
