| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,690 pcs
|
4690 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,690 pcs
|
4690 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Quality Class | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

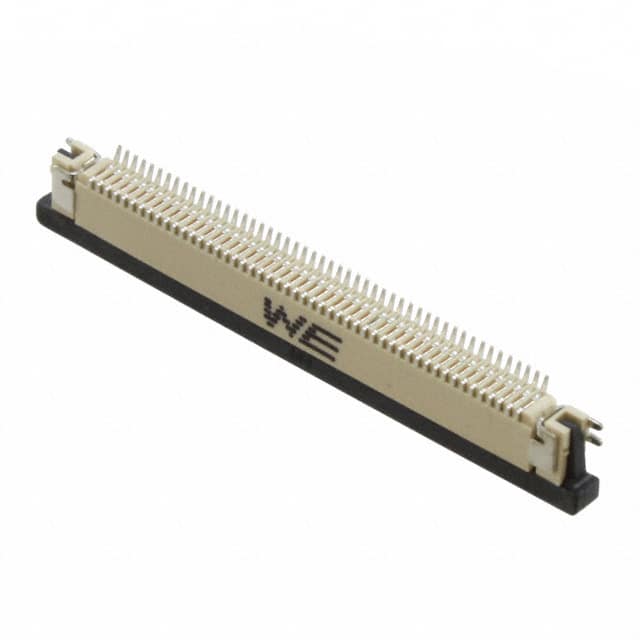

The 68715014522 is a 50-position FPC connector from Würth Elektronik's WR-FPC series. It features a 0.5mm pitch and a surface mount right angle orientation with bottom contacts. The connector employs a Zero Insertion Force (ZIF) mechanism with a slide lock for secure cable retention. Contacts are tin-plated phosphor bronze, and the housing is made of liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Electrical ratings include 50V operating voltage and 1A current per contact. The operating temperature range is -25°C to +85°C. The connector is designed for 25 mating cycles and is packaged in tape and reel for automated assembly. It is RoHS compliant and lead-free. This connector is suitable for applications requiring compact, reliable connections between FPC cables and PCBs in consumer electronics, industrial controls, and automotive systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.97 | $1.97 |
| 10+ | $1.92 | $1.92 |
| 50+ | $1.82 | $1.82 |
| 100+ | $1.71 | $1.71 |
| 500+ | $1.61 | $1.61 |
| 1,000+ | $1.50 | $1.50 |
| 2,000+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
0.50mm (0.020").
1A.
50V.
Surface Mount, Right Angle.
Yes, a slide lock.
-25°C to 85°C.
