| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

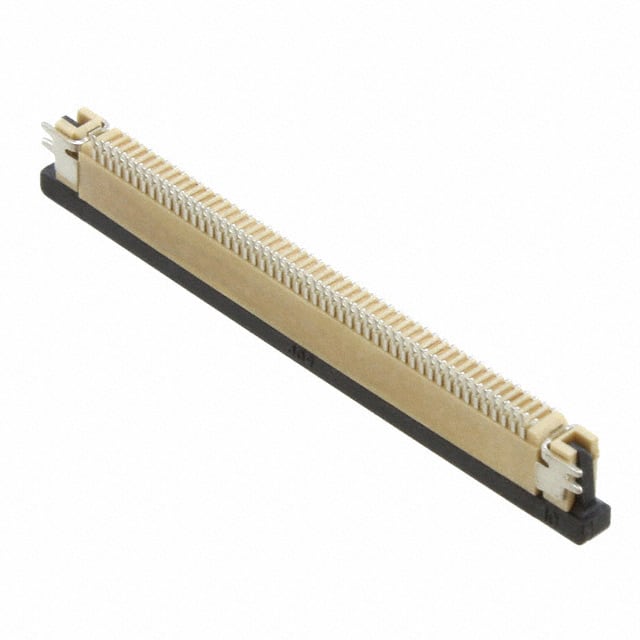

The Würth Elektronik WR-FPC 68715014022 is a 50-position FPC connector with a 0.5mm pitch, designed for surface mount right angle mounting. It features a top contact configuration with a slide lock ZIF (Zero Insertion Force) mechanism, enabling easy cable insertion and secure retention.
This connector is rated for 1A current and 50V voltage, with an operating temperature range of -25°C to +85°C. The housing and actuator are made of Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with tin plating, and the connector supports FPC cables with a thickness of 0.30mm and tapered cable end type.
Packaged in tape and reel for automated assembly, this connector is suitable for compact electronic devices requiring reliable flat flex cable interconnections. It is RoHS and Lead Free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.84 | $1.84 |
| 10+ | $1.80 | $1.80 |
| 50+ | $1.72 | $1.72 |
| 100+ | $1.63 | $1.63 |
| 500+ | $1.55 | $1.55 |
| 1,000+ | $1.47 | $1.47 |
| 2,000+ | $1.34 | $1.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm.
It has 50 positions.
The current rating is 1A.
The voltage rating is 50V.
It uses surface mount, right angle mounting.
The operating temperature range is -25°C to +85°C.
Yes, it is RoHS3 compliant and Lead Free.
