| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

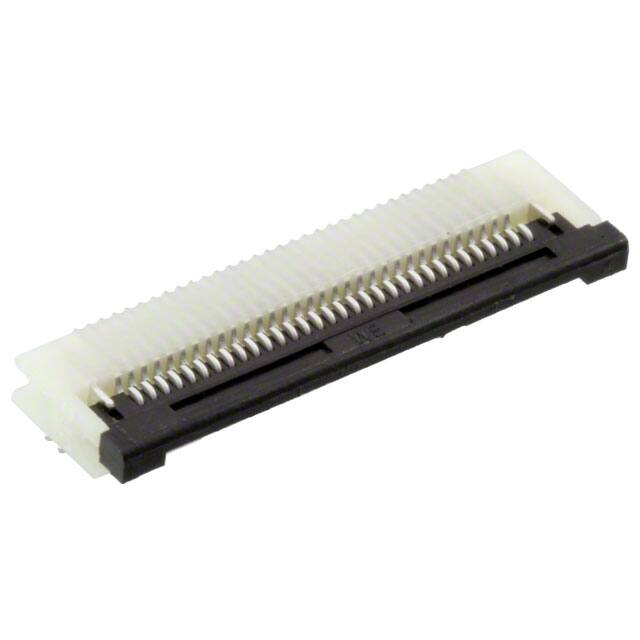

The Würth Elektronik WR-FPC series part 687132149022 is a zero insertion force (ZIF) FFC/FPC connector featuring 32 positions with a 0.50mm pitch. It uses a bottom contact design and is mounted horizontally via surface mount technology. The connector is suitable for flat flexible cables up to 0.30mm thickness.
Electrical ratings include 1A current and 125V working voltage. The operating temperature range is -25°C to +85°C. Mating cycles are rated at 25 cycles. The locking mechanism is a hinge type.
The housing and actuator are molded from polyamide (PA6T/Nylon 6T) with UL94 V-0 flammability rating. Contacts are phosphor bronze with 100 µ" tin over 50 µ" nickel plating. Packaging is tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.11 | $2.11 |
| 50+ | $2.01 | $2.01 |
| 100+ | $1.87 | $1.87 |
| 500+ | $1.72 | $1.72 |
| 1,000+ | $1.51 | $1.51 |
| 2,000+ | $1.51 | $1.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 positions
0.50mm
1A
125V
Surface Mount, Right Angle
-25°C to +85°C
Yes, RoHS compliant
