| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
630 pcs
|
630 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Material | |
| Automotive Grade | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Durability | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Locking Feature | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Rated Current | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

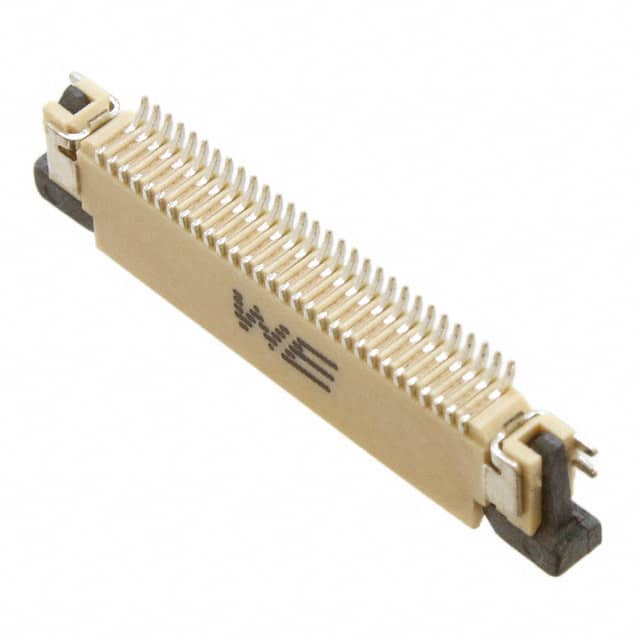

The Würth Elektronik 68713014022 is a WR-FPC series SMT ZIF horizontal FPC connector with 30 positions and a 0.5mm pitch. It features a right-angle surface mount design with a slide lock mechanism for secure cable retention. The connector is rated for 0.5A current and 50V AC, with a contact resistance of 20mΩ maximum and insulation resistance of 100MΩ minimum. It can withstand 250V AC for 1 minute.
The housing is made of Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, and the contacts are phosphor bronze with a tin over nickel finish. The actuator material is PA9T. The connector accommodates FPC cables with a thickness of 0.30mm and a tapered end type. The height above board is 2.00mm, and the overall length is 21.4mm.
Packaging is tape and reel with a standard quantity of 2000 pieces. The operating temperature range is -25°C to 85°C. The connector is RoHS and REACH compliant and has UL approval (E323964).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.78 | $1.78 |
| 10+ | $1.72 | $1.72 |
| 50+ | $1.60 | $1.60 |
| 100+ | $1.48 | $1.48 |
| 500+ | $1.37 | $1.37 |
| 1,000+ | $1.25 | $1.25 |
| 2,000+ | $1.02 | $1.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
0.5mm.
0.5A.
50V AC.
Surface Mount, Right Angle.
-25°C to 85°C.
Yes, RoHS compliant per 2011/65/EU and 2015/863.
