Mfr Part #:

68712414522

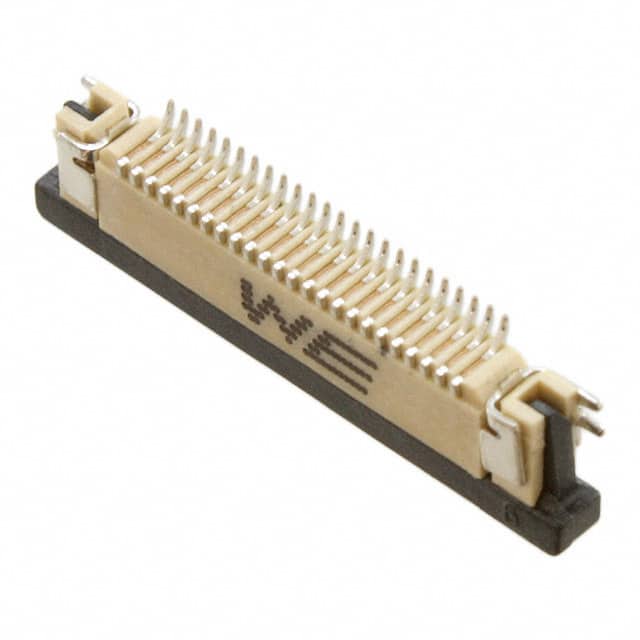

Würth Elektronik WR-FPC ZIF FPC connector with 24 positions, 0.5mm pitch, right angle surface mount, bottom contacts, rated 1A and 125V.

✓ Total Stock: 1,600 pcs

$ Price Range: $0.98 - $1.62

68712414522 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	800 pcs On Request	800 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	800 pcs On Request	800 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

68712414522 Description

Short technical summary and product information.

The Würth Elektronik 68712414522 is a 24-position, 0.50mm pitch FPC connector from the WR-FPC series. It features a right-angle surface mount design with bottom contacts and a Zero Insertion Force (ZIF) slide lock actuator for secure cable retention. The connector is rated for 1A current and 125V working voltage, with an operating temperature range of -25°C to +85°C. Contacts are phosphor bronze with 100u" tin over 50u" nickel plating, and the housing and actuator are made of Liquid Crystal Polymer (LCP) with UL94 V-0 flammability rating. It is designed for 0.30mm thick FPC cables with tapered ends and supports 25 mating cycles. The connector is RoHS3 compliant, lead-free, and UL certified (E323964). Supplied in tape and reel packaging for automated assembly.

68712414522 Quick Information

Product Type: FPC Connector

Series: 687

Canonical Name: Würth Elektronik WR-FPC 0.50mm Pitch FPC Connector, 24 Positions, Bottom Contact, Right Angle, ZIF

Subcategory: ZIF Connector

68712414522 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free

68712414522 Estimated Pricing

Qty	Low	High
1+	$1.62	$1.62
10+	$1.57	$1.57
50+	$1.46	$1.46
100+	$1.35	$1.35
500+	$1.24	$1.24
1,000+	$1.13	$1.13
2,000+	$0.98	$0.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

68712414522 Features

24 positions with 0.50mm pitch spacing.
Zero Insertion Force (ZIF) slide lock actuator.
Right angle surface mount with bottom contacts.
Rated for 1A current and 125V working voltage.
RoHS3 compliant and UL certified (E323964).

68712414522 Applications

Used in compact consumer electronics assemblies.
Ideal for LCD and display interconnect applications.
Suitable for portable and battery-powered devices.
Common in automotive infotainment and control modules.

68712414522 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 68712414522 have?

24 positions.

What is the pitch of this FPC connector?

0.50mm.

What is the current rating?

1A.

What is the voltage rating?

125V (per datasheet).

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-25°C to +85°C.

Is this connector RoHS compliant?

Yes, RoHS3 compliant and lead-free.

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Würth Elektronik
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Contact Plating	100u" Tin over 50u" Ni
Contact Termination	Solder
Current Rating	1A
FFC, FCB Thickness	0.30mm
Features	Zero Insertion Force (ZIF)
Flat Flex Type	FPC
Height Above Board	0.079" (2.00mm)
Housing Material	Liquid Crystal Polymer (LCP)
Lead Spacing	0.5 mm
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	25
Mounting Type	Surface Mount, Right Angle
Number of Positions	24
Operating Temperature	-25°C ~ 85°C
Pitch	0.50mm (0.020")
Tape & Reel	Yes
Termination	Solder
Voltage Rating	125V
