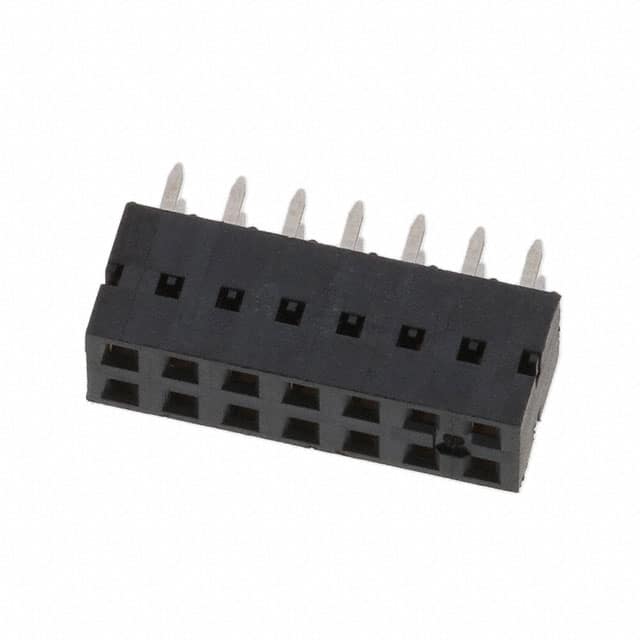

68683-307 A 14-position, 2-row board-to-board receptacle with 2.54mm pitch, through hole solder termination, and tin contact finish.
Mfr Part #:

68683-307

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
A 14-position, 2-row board-to-board receptacle with 2.54mm pitch, through hole solder termination, and tin contact finish.
✓ Total Stock: 963 pcs
$ Price Range: $1.84

68683-307 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
963 pcs
On Request
963 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

68683-307 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Type
Fastening Type
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Termination
Voltage Rating
View Similar Products (0)

68683-307 Description

Short technical summary and product information.

The 68683-307 is a rectangular connector from Amphenol ICC, designed as a receptacle with female socket contacts. It features 14 positions arranged in 2 rows with a pitch of 2.54mm (0.100") and row spacing of 2.54mm. The connector is through-hole mounted with solder termination, suitable for board-to-board applications. The contact length is 2.92mm and the insulation height is 7.00mm, with a black push-pull fastening type. The contact finish is tin with a thickness of 30.0µin (0.76µm). The operating temperature range is -65°C to 125°C, and the voltage rating is 1000V. The housing material has a UL94 V-0 flammability rating. All positions are loaded. The connector is RoHS3 compliant (unverified), MSL 1, and REACH unaffected. The standard packaging is not verified. This part is commonly used in board-to-board interconnections requiring reliable soldering and high voltage capability.

68683-307 Quick Information

Product Type: Rectangular Connector - Receptacle
Canonical Name: Receptacle, 14 Position, 2.54mm Pitch, Through Hole, Tin
Subcategory: Board-to-Board Connectors

68683-307 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

68683-307 Estimated Pricing

Qty Low High
1+ $1.84 $1.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

68683-307 Features

  • 14-position, 2-row board-to-board receptacle.
  • 2.54mm pitch and row spacing.
  • Through hole solder termination.
  • Tin contact finish with 30.0µin thickness.
  • Rated for 1000V and -65°C to 125°C.

68683-307 Applications

  • Used in board-to-board interconnections in electronic assemblies.
  • Suitable for high voltage applications up to 1000V.
  • Works in extreme temperature environments from -65°C to 125°C.
  • Ideal for applications requiring through hole soldering for robust connections.

68683-307 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 68683-307 have?

14 positions, all loaded.

What is the pitch of the 68683-307?

2.54mm (0.100").

What is the voltage rating of the 68683-307?

1000V.

What is the mounting type?

Through hole.

What is the contact finish?

Tin with 30.0µin (0.76µm) thickness.

What is the operating temperature range?

-65°C to 125°C.

What is the fastening type?

Push-Pull.
