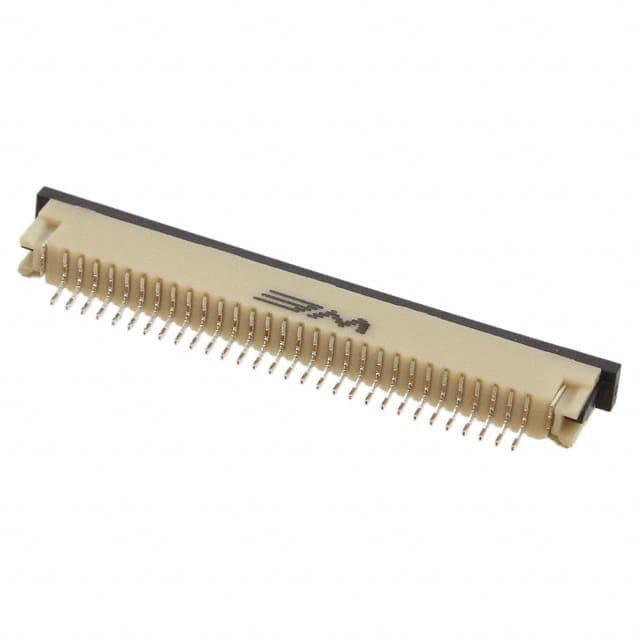

68613014422 Würth Elektronik WR-FPC ZIF connector with 30 positions at 1.00mm pitch, bottom contact, surface mount right angle, rated 1A and 125V.
Mfr Part #:

68613014422

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-FPC ZIF connector with 30 positions at 1.00mm pitch, bottom contact, surface mount right angle, rated 1A and 125V.
✓ Total Stock: 3,000 pcs
$ Price Range: $1.77 - $2.91

68613014422 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 30 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

68613014422 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
Contact Plating
Contact Type
Current Rating
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Locking Feature
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

68613014422 Description

Short technical summary and product information.

The Würth Elektronik 68613014422 is a WR-FPC series Zero Insertion Force (ZIF) FPC connector designed for reliable flat flexible cable interconnections. It features 30 positions with a 1.00mm pitch and bottom contact configuration, making it suitable for compact electronic assemblies.



This connector is rated for 1A current and 125V working voltage, with an operating temperature range of -25°C to +85°C. The housing and actuator are molded from Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating, and contacts are phosphor bronze with 100µ" tin over 50µ" nickel plating.



The surface mount right-angle design includes solder retention and a slide lock for secure cable mating. It is packaged in tape and reel for automated assembly and is RoHS compliant and UL certified (E323964).

68613014422 Quick Information

Product Type: FPC Connector
Series: WR-FPC
Canonical Name: Würth Elektronik WR-FPC 1.00mm Pitch 30-Position Bottom Contact ZIF FPC Connector
Subcategory: ZIF Connector

68613014422 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

68613014422 Estimated Pricing

Qty Low High
1+ $2.91 $2.91
10+ $2.68 $2.68
50+ $2.49 $2.49
100+ $2.15 $2.15
500+ $2.06 $2.06
1,500+ $1.77 $1.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

68613014422 Features

  • 30 positions at 1.00mm pitch.
  • Zero Insertion Force (ZIF) design.
  • Bottom contact configuration.
  • Rated for 1A and 125V.
  • Slide lock for secure cable retention.

68613014422 Applications

  • Used in consumer electronics and portable devices.
  • Ideal for LCD and display interconnections.
  • Suitable for automotive infotainment systems.
  • Applicable in industrial control interfaces.

68613014422 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this connector?

The pitch is 1.00mm.

How many positions does this connector have?

It has 30 positions.

What is the current rating?

The current rating is 1A.

What is the voltage rating?

The voltage rating is 125V.

What mounting type does this connector use?

Surface mount, right angle.

Is this connector RoHS compliant?

Yes, it is RoHS3 compliant and lead free.

What is the operating temperature range?

-25°C to +85°C.
