Mfr Part #:

686116183522

Name: 686116183522
Brand: Würth Elektronik
SKU: 686116183522

Mfr Name: Würth Elektronik

Description:

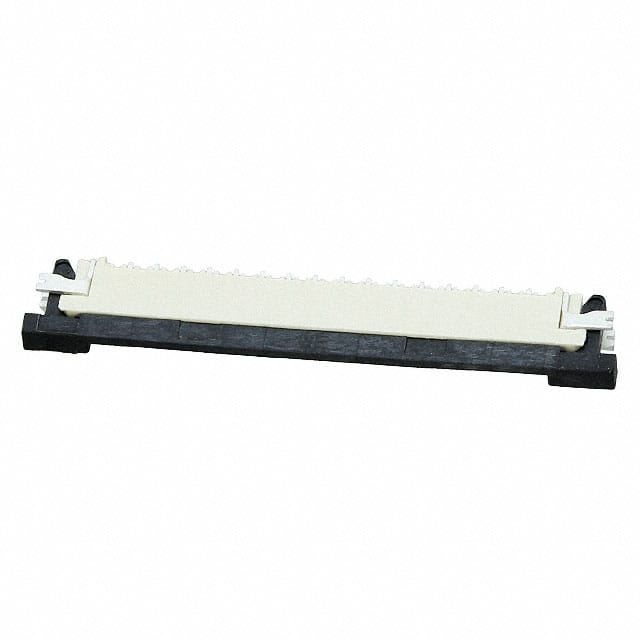

CONN FFC BOTTOM 16POS 1MM R/A

Stock on Request

686116183522 Description

Short technical summary and product information.

CONN FFC BOTTOM 16POS 1MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Würth Elektronik
Actuator Material	Polyamide (PA6T), Nylon 6T
Cable End Type	Straight
Connector	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.30mm
Features	Solder Retention, Zero Insertion Force (ZIF)
Flat Flex Type	FFC
Height Above Board	0.047" (1.20mm)
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Operating Temperature	-25°C ~ 85°C
Pitch	0.039" (1.00mm)
Termination	Solder
