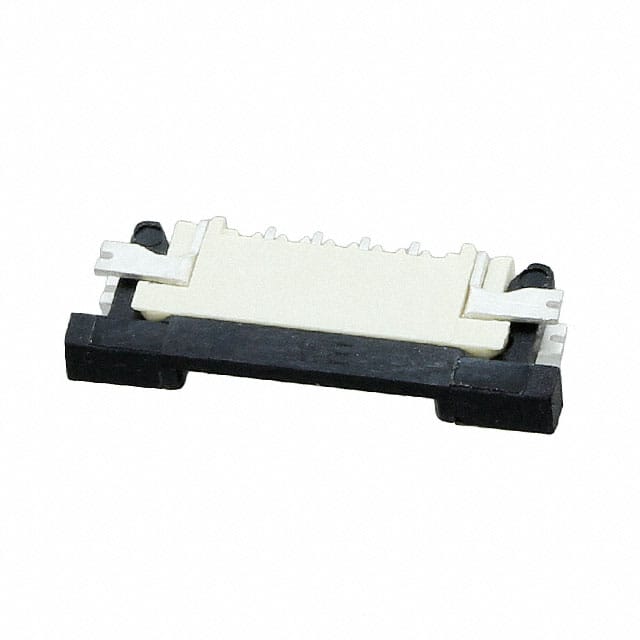

The Würth Elektronik 686104183522 is a WR-FPC series SMT ZIF (Zero Insertion Force) horizontal low profile FFC connector. It offers 4 positions with a 1.00mm pitch and bottom contact configuration, designed for surface mount right angle mounting.
This connector features a flip lock actuator for secure cable retention and solder retention tabs for reliable board attachment. The housing is made of Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, and the actuator is Polyamide (PA6T). Contacts are phosphor bronze with tin over nickel plating.
Electrical ratings include a nominal current of 0.8 A, working voltage of 50 V AC, and withstanding voltage of 250 V AC for 1 minute. Contact resistance is 30 mΩ maximum, and insulation resistance is 100 MΩ minimum. The operating temperature range is -25°C to 85°C.
The connector is packaged in tape and reel with a standard quantity of 4000 pieces. It is RoHS, REACH, and Halogen Free compliant, and has UL approval E323964.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
| 10+ | $1.30 | $1.30 |
| 100+ | $1.11 | $1.11 |
| 1,000+ | $1.01 | $1.01 |
| 4,000+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm.
It has 4 positions.
The rated current is 0.8 A.
The working voltage is 50 V AC.
It is surface mount, right angle.
The operating temperature range is -25°C to 85°C.
Yes, it is RoHS compliant per 2011/65/EU & 2015/863.
