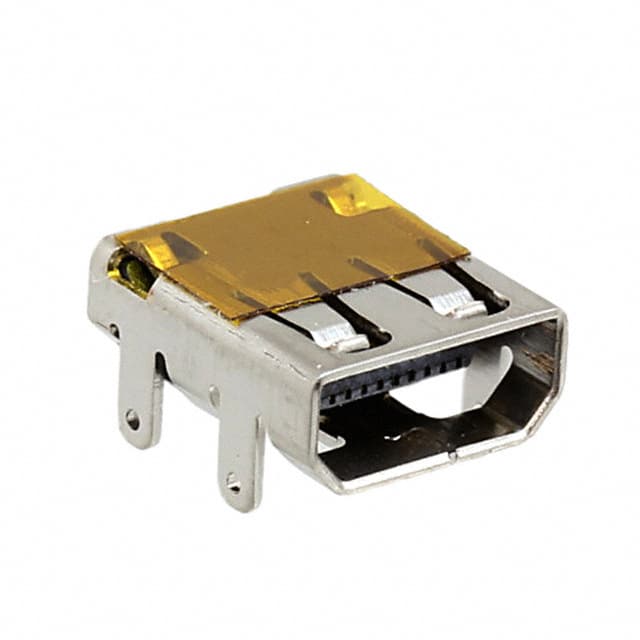

The Würth Elektronik 685119248123 is a WR-COM Micro HDMI horizontal surface-mount receptacle designed for high-density HDMI Type D connections. It features 19 stamped copper alloy contacts with selective gold plating, ensuring reliable signal integrity. The connector is fully shielded with a brass shell and tin plating, and includes a board guide for accurate placement during assembly.
Rated at 0.5A per contact and 40VAC, with a withstanding voltage of 250VAC, this connector is suitable for consumer electronics and portable devices. Contact resistance is 10 mΩ maximum, and insulation resistance is 100 MΩ minimum. The insulator is made of LCP, supporting an operating temperature range of -25°C to 85°C.
Designed for horizontal mounting on the PCB, the connector uses solder termination and is compatible with reflow soldering processes. It is rated for 5000 mating cycles, making it durable for frequent use applications. The part is RoHS, REACH, and halogen-free compliant, with MSL level 1 for unlimited floor life.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.03 | $3.03 |
| 50+ | $2.59 | $2.59 |
| 100+ | $2.36 | $2.36 |
| 250+ | $2.35 | $2.35 |
| 500+ | $2.21 | $2.21 |
| 1,000+ | $1.65 | $1.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.5 A per contact.
40 VAC operating, with a withstanding voltage of 250 VAC.
Surface mount, right angle (horizontal).
19 contacts.
Yes, it is shielded with a brass shell and tin plating.
-25°C to 85°C.
5000 mating cycles.
