| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
205 pcs
|
205 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Gender | |
| Halogen Free | |
| Industrial Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Pins | |
| Number of Ports | |
| Operating Temperature | |
| Package / Case | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage |

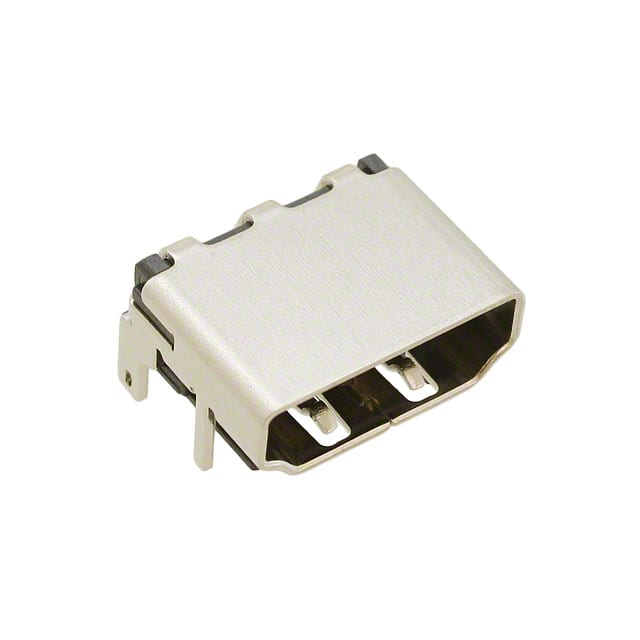

The Würth Elektronik 685119134923 is a WR-COM HDMI horizontal SMT receptacle connector. It features 19 contacts in a Type A configuration, designed for surface mount right-angle placement on PCBs. The connector is fully shielded with a brass shell and nickel plating for EMI protection. Electrical ratings include 0.5A per contact and 40VAC withstanding voltage, with contact resistance of 30 mΩ max and insulation resistance of 10 MΩ min. The operating temperature range is -25°C to +85°C, and the connector is rated for 10,000 mating cycles. Contacts are made of copper alloy with selective gold plating. The insulator is black LCP rated UL94 V-0. The part is RoHS, REACH, and Halogen-Free compliant per IEC 61249-2-21.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.51 | $2.51 |
| 10+ | $2.48 | $2.48 |
| 50+ | $2.25 | $2.25 |
| 100+ | $2.01 | $2.01 |
| 250+ | $1.78 | $1.78 |
| 500+ | $1.66 | $1.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 19 positions (contacts).
The current rating is 0.5 A per contact.
The voltage rating is 40 VAC.
The mounting type is Surface Mount, Right Angle.
The operating temperature range is -25°C to +85°C.
Yes, it is shielded.
The connector is rated for 10,000 mating cycles.
