| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

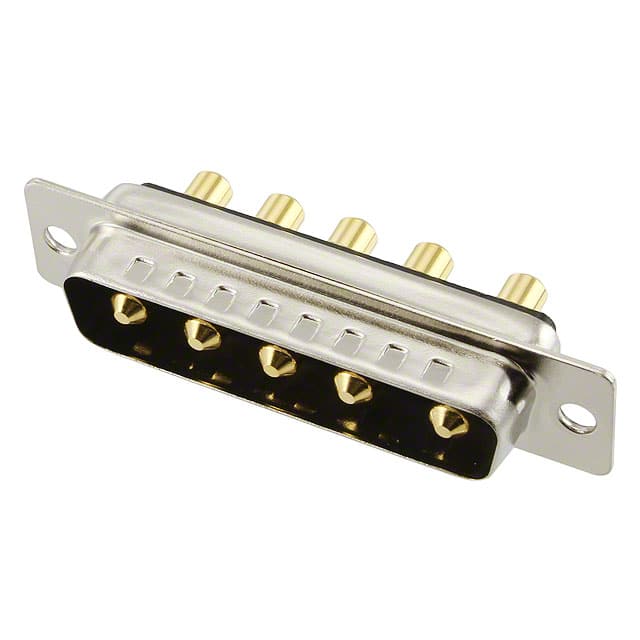

The 681M5W5103L001 is a D-Sub combo connector from NorComp Inc. featuring a plug configuration with 5 power contacts (5W5 layout). It is designed for panel mount installation with through-hole solder termination. The connector uses a steel shell with a nickel-plated finish and gold flash contact plating.
Electrical rating is 40A per contact. The shell size is 3 (DB, B) and the flange feature is housing/shell unthreaded. Grounding indents are included for improved EMI performance. The insulator material has a UL94 V-0 flammability rating.
This connector is suitable for power delivery applications requiring a compact D-Sub form factor. The combination panel mount / through-hole mounting provides secure mechanical attachment while using solder connections for reliable electrical termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.38 | $14.38 |
| 10+ | $12.75 | $12.75 |
| 25+ | $12.26 | $12.26 |
| 50+ | $11.76 | $11.76 |
| 100+ | $11.10 | $11.10 |
| 250+ | $10.12 | $10.12 |
| 500+ | $8.82 | $8.82 |
| 1,000+ | $8.40 | $8.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 amps per contact.
Panel mount and through-hole solder.
Gold flash.
5 power positions (5W5 layout).
Steel with nickel plating.
UL94 V-0.
