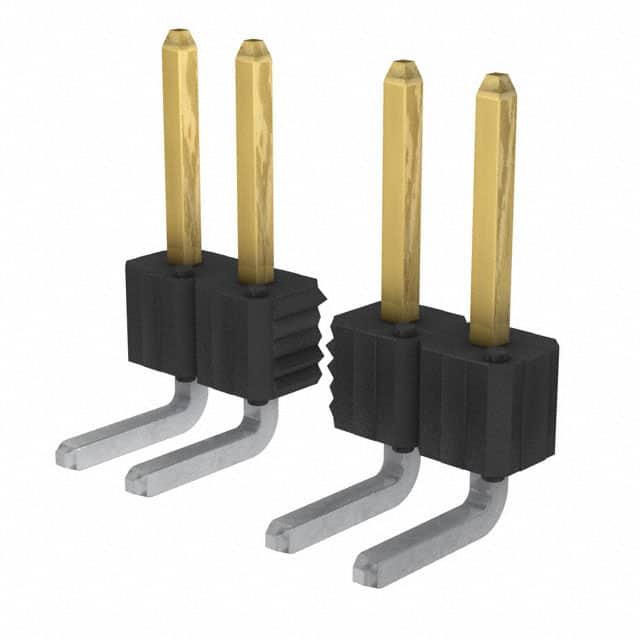

68016-106HLF Amphenol ICC 68016-106HLF is a 6-position single row right angle header with 2.54mm pitch. It features through hole mounting, solder termination, and gold contact finish.
Mfr Part #:

68016-106HLF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 68016-106HLF is a 6-position single row right angle header with 2.54mm pitch. It features through hole mounting, solder termination, and gold contact finish.
✓ Total Stock: 400 pcs
$ Price Range: $0.31 - $0.61

68016-106HLF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
400 pcs
On Request
400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

68016-106HLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Operating Temperature Range
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

68016-106HLF Description

Short technical summary and product information.

The Amphenol ICC 68016-106HLF is a 6-position single row male pin header designed for board to board applications. It features a right angle orientation with through hole mounting and solder termination for reliable connections. The connector has a 2.54mm (0.100 inch) pitch and is unshrouded with a push-pull fastening type.



Contacts are made of phosphor bronze with a gold or GXT finish of 30.0 microinches thickness, ensuring good conductivity and corrosion resistance. The black insulator has a height of 2.41mm and is rated UL94 V-0 for flammability. The operating temperature range is -65°C to 130°C, and the current rating is 3A.



This header is suitable for general purpose interconnections where a low profile right angle mating is required. The single row configuration with 6 positions allows for compact designs. Contact length is 5.84mm.

68016-106HLF Quick Information

Product Type: Header, Male Pins
Series: 68016
Canonical Name: Amphenol ICC 68016-106HLF 6-Position Single Row Right Angle Header, 2.54mm Pitch
Subcategory: Male Pins

68016-106HLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

68016-106HLF Estimated Pricing

Qty Low High
1+ $0.61 $0.61
10+ $0.52 $0.52
25+ $0.50 $0.50
100+ $0.38 $0.38
250+ $0.34 $0.34
1,000+ $0.34 $0.34
5,000+ $0.33 $0.33
10,000+ $0.31 $0.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

68016-106HLF Features

  • Six positions single row arrangement.
  • 2.54mm pitch standard spacing.
  • Right angle through hole mounting.
  • Gold contact finish 30 microinches.
  • Rated for 3 amps current.

68016-106HLF Applications

  • Board to board interconnections.
  • Right angle connector assemblies.
  • Low profile header applications.
  • General purpose pin header use.

68016-106HLF FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

6 positions.

What is the pitch of the connector?

2.54mm (0.100 inches).

What is the current rating?

3A.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-65°C to 130°C.

What is the contact finish thickness?

30.0 microinches (0.76 micrometers) of gold.
