| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,000 pcs
|
16000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

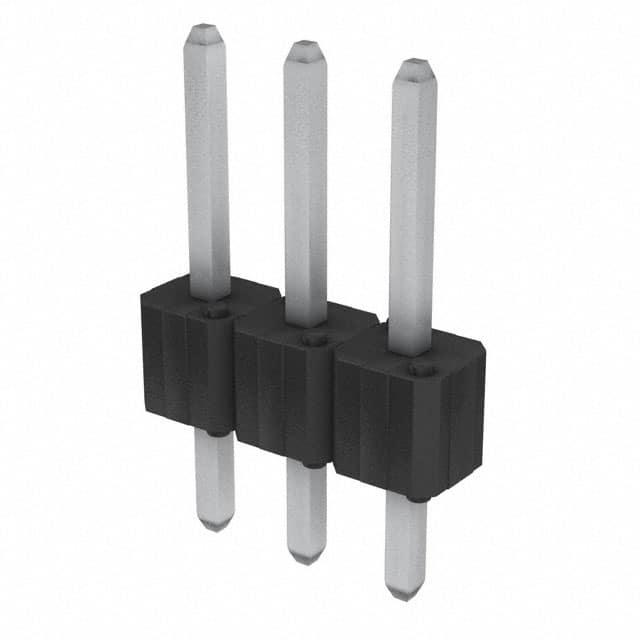

The Amphenol ICC 68001-403HLF is a 3-position, single-row unshrouded male pin header designed for board-to-board applications. It features a 2.54mm (0.100") pitch and through-hole mounting with solder termination, making it suitable for standard PCB layouts.
The header uses square phosphor bronze contacts with a tin finish (100.0µin / 2.54µm thickness) for reliable electrical connections. The black thermoplastic insulator has a UL94 V-0 flammability rating and an insulation height of 2.54mm (0.100"). Each contact is rated for 3A, and the operating temperature range spans -65°C to 125°C.
With a push-pull fastening type and unshrouded design, this connector is ideal for applications requiring simple, low-profile board-to-board interconnects. The overall contact length is 11.43mm (0.450"), with a mating contact length of 5.84mm (0.230").
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.16 | $0.16 |
| 25+ | $0.14 | $0.14 |
| 100+ | $0.13 | $0.13 |
| 250+ | $0.12 | $0.12 |
| 1,000+ | $0.11 | $0.11 |
| 3,000+ | $0.10 | $0.10 |
| 5,000+ | $0.10 | $0.10 |
| 10,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions in a single row.
The pitch is 2.54mm (0.100").
Each contact is rated for 3A.
It is a through-hole mounting connector with solder termination.
The operating temperature range is -65°C to 125°C.
Contacts are phosphor bronze with a tin finish (100.0µin / 2.54µm thickness).
It is listed as RoHS3 Compliant, though this is unverified from a source document.
