| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,500 pcs
|
9500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

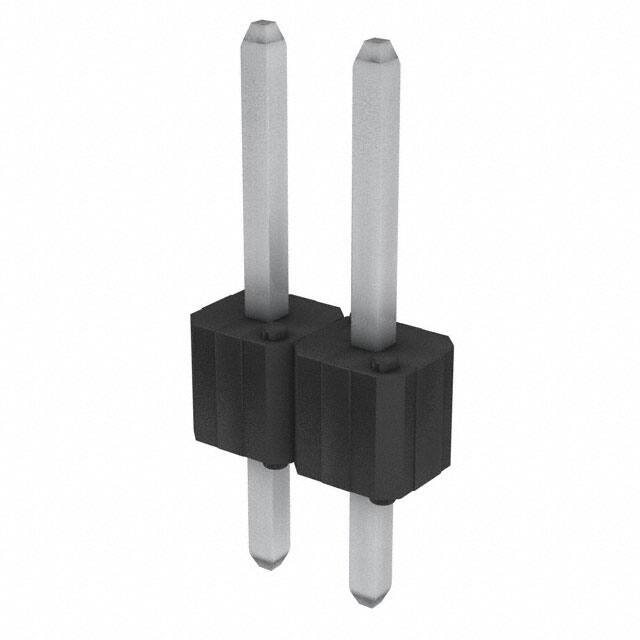

The Amphenol ICC 68001-402HLF is a 2-position, single row, unshrouded header designed for board-to-board applications. It features a 2.54mm (0.100") pitch and through-hole mounting with solder termination. The contacts are made of phosphor bronze with a tin finish, providing reliable electrical connections. The header is rated for 3A per contact and operates over a temperature range of -65°C to 125°C. The black insulator is made of UL94 V-0 rated material, ensuring flame retardancy. The unshrouded design allows for easy mating with compatible female sockets. This header is suitable for wire-to-board or board-to-board configurations in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
| 10+ | $0.10 | $0.10 |
| 100+ | $0.09 | $0.09 |
| 250+ | $0.08 | $0.08 |
| 1,000+ | $0.06 | $0.06 |
| 3,000+ | $0.06 | $0.06 |
| 5,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 2 positions arranged in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A per contact.
It uses through-hole mounting with solder termination.
The operating temperature range is -65°C to 125°C.
Contacts are made of phosphor bronze with a tin finish.
The insulator is rated UL94 V-0.
