| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

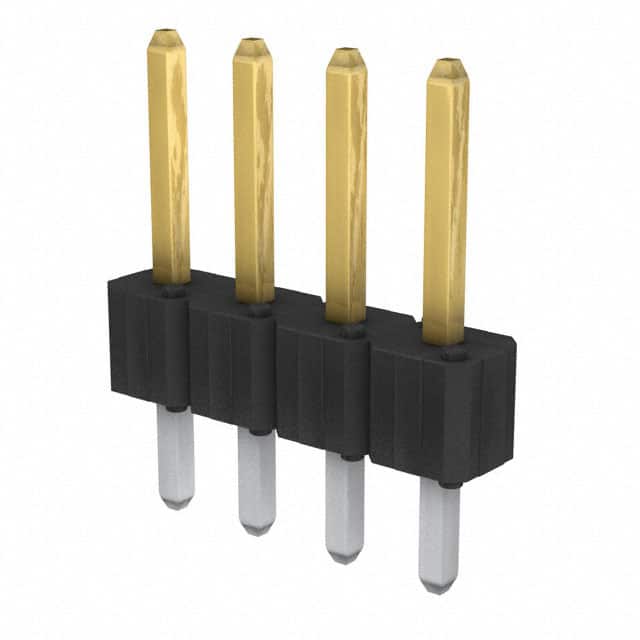

The Amphenol ICC 68001-204HLF is a 4-position, single row, 2.54mm pitch through-hole male pin header. It is designed for board-to-board applications and features an unshrouded profile with push-pull fastening. The square pins are made of phosphor bronze with a gold or Gold GXT finish of 15.0µin (0.38µm) for reliable contact and corrosion resistance.
Key specifications include a current rating of 3A per contact, an overall contact length of 0.450" (11.43mm), and a mated contact length of 0.230" (5.84mm). The insulation height is 2.54mm (0.100") and the housing is black with a UL94 V-0 flammability rating. The operating temperature range is -65°C to 125°C, making it suitable for a wide variety of environments.
This header uses through-hole solder termination, providing a robust mechanical connection to the PCB. With all positions loaded, it is a versatile component for general purpose signal or low-power interconnections. The unshrouded design allows for flexibility in mating with different connector types or wire harnesses. Typical applications include prototyping, industrial control, and consumer electronics where reliable board-to-board connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
| 10+ | $0.34 | $0.34 |
| 100+ | $0.29 | $0.29 |
| 1,000+ | $0.29 | $0.29 |
| 5,000+ | $0.29 | $0.29 |
| 10,000+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 4 positions in a single row.
The pitch is 2.54mm (0.100").
Each contact is rated for 3A continuous current.
The header is through-hole mounted (solder).
The operating temperature range is -65°C to 125°C.
The contacts have a gold or Gold GXT finish with a thickness of 15.0µin (0.38µm).
The contacts are made of phosphor bronze.
