| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

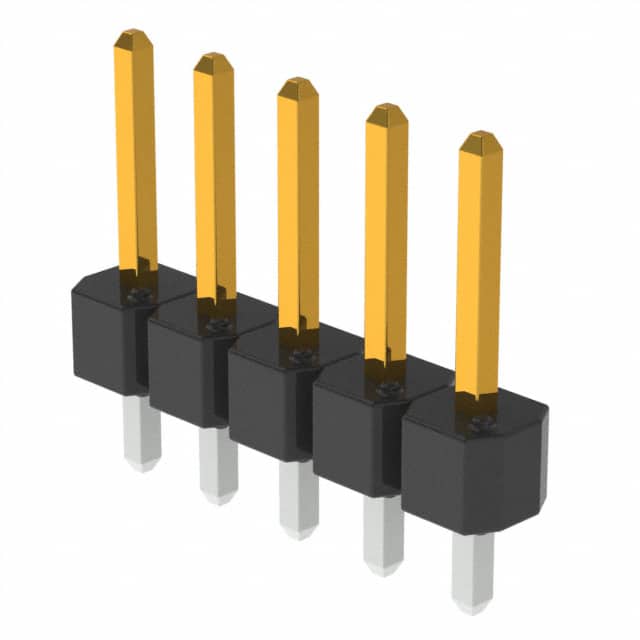

The Amphenol ICC 68000-105HLF is a 5-position single row unshrouded header designed for board-to-board applications. It features a 2.54mm (0.100") pitch and through hole mounting with solder termination. The male square pins are made of phosphor bronze with a gold or Gold GXT contact finish of 30.0µin (0.76µm). The overall contact length is 0.425" (10.80mm) with a contact length of 0.230" (5.84mm). The black insulation has a height of 2.54mm (0.100") and is rated UL94 V-0 for flammability. The connector is rated for 3A per contact and operates over a temperature range of -65°C to 125°C. The push-pull fastening type and unshrouded design make it suitable for general purpose board-to-board interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.54 | $0.54 |
| 10+ | $0.46 | $0.46 |
| 25+ | $0.45 | $0.45 |
| 100+ | $0.39 | $0.39 |
| 250+ | $0.35 | $0.35 |
| 1,000+ | $0.33 | $0.33 |
| 5,000+ | $0.29 | $0.29 |
| 10,000+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 5 positions in a single row.
The current rating is 3A per contact.
Through hole mounting with solder termination.
-65°C to 125°C.
Gold or Gold GXT with 30.0µin (0.76µm) thickness.
