| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

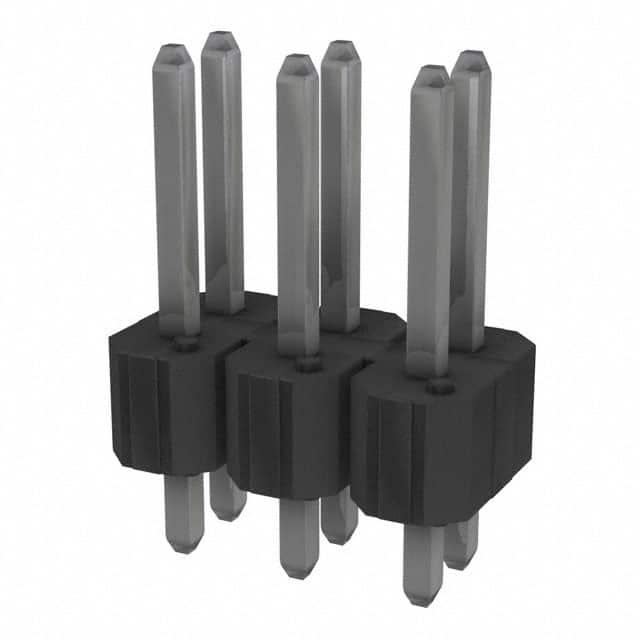

The 67996-406HLF from Amphenol ICC is a 6-position, 2-row unshrouded header designed for board-to-board applications. It features a 2.54mm pitch and 2.54mm row spacing, making it compatible with standard 0.100" grid patterns. The header is unshrouded with a push-pull fastening type, providing easy mating and unmating.
Electrical specifications include a current rating of 3A per contact and an operating temperature range of -65°C to 125°C. The contacts are made of phosphor bronze with a tin finish (100µin thickness), ensuring reliable conductivity. The insulator is black with a UL94 V-0 flammability rating.
This header is through-hole mounted with solder termination, providing a robust mechanical connection. The overall contact length is 10.80mm, with a contact length of 5.84mm. The insulation height is 2.54mm. It is suitable for various interconnection applications requiring a compact, reliable header.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.34 | $0.34 |
| 10+ | $0.28 | $0.28 |
| 25+ | $0.27 | $0.27 |
| 100+ | $0.25 | $0.25 |
| 250+ | $0.22 | $0.22 |
| 1,000+ | $0.21 | $0.21 |
| 5,000+ | $0.19 | $0.19 |
| 10,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions
2.54mm (0.100")
3A per contact
Through hole
-65°C to 125°C
Tin with 100µin (2.54µm) thickness
UL94 V-0
