| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

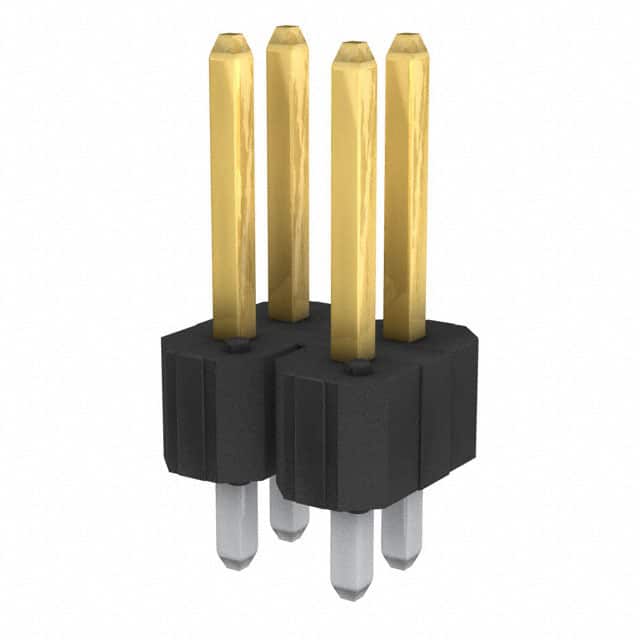

The 67996-104HLF is a 4 position, 2 row, unshrouded header connector designed for board-to-board applications. It features a 2.54mm (0.100") pitch and row spacing, with through hole mounting and solder termination. The contacts are male pins made of phosphor bronze with a gold or Gold, GXT™ finish of 30.0µin (0.76µm) thickness. The insulation is black, rated UL94 V-0, and the operating temperature range is -65°C to 125°C. The contact length is 5.84mm (0.230") and overall contact length is 10.80mm (0.425"), with an insulation height of 2.54mm (0.100"). The fastening type is push-pull and the connector is unshrouded. Current rating is 3A per contact. This connector is suitable for general purpose signal interconnects and prototyping.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.44 | $0.44 |
| 10+ | $0.35 | $0.35 |
| 25+ | $0.34 | $0.34 |
| 100+ | $0.32 | $0.32 |
| 250+ | $0.29 | $0.29 |
| 1,000+ | $0.25 | $0.25 |
| 5,000+ | $0.24 | $0.24 |
| 10,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions
2.54mm (0.100")
3A per contact
Through hole
-65°C to 125°C
Gold or Gold, GXT™ with 30.0µin (0.76µm) thickness
UL94 V-0
