| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Housing Material | |
| Material Flammability Rating | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Voltage Rating |

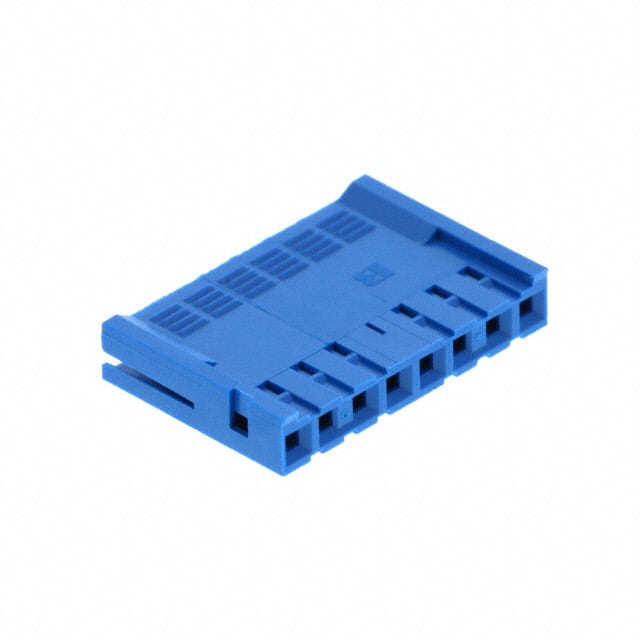

The 67013-008LF from Amphenol ICC is a housing for female contacts designed for use with FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors. This 8-position, single-row housing features a 2.54mm (0.100") pitch and accepts cables with a thickness of 0.31mm. The housing is constructed from glass-filled polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, ensuring reliable performance in demanding environments. It operates over a wide temperature range of -65°C to 125°C and is rated for 500V. This component is suitable for applications requiring secure and compact interconnection of flat flexible cables, such as in consumer electronics, automotive systems, industrial controls, and data communication equipment. The housing is designed to be used with compatible female crimp contacts (not included).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.72 | $0.72 |
| 10+ | $0.61 | $0.61 |
| 25+ | $0.55 | $0.55 |
| 100+ | $0.52 | $0.52 |
| 250+ | $0.47 | $0.47 |
| 1,000+ | $0.42 | $0.42 |
| 2,500+ | $0.41 | $0.41 |
| 5,000+ | $0.40 | $0.40 |
| 10,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.54mm (0.100").
500V.
-65°C to 125°C.
FFC and FPC cables with 0.31mm thickness.
Polybutylene Terephthalate (PBT) glass filled, UL94 V-0 rated.
UL94 V-0.
