| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
198 pcs
|
198 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Inductance at Rated Current | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

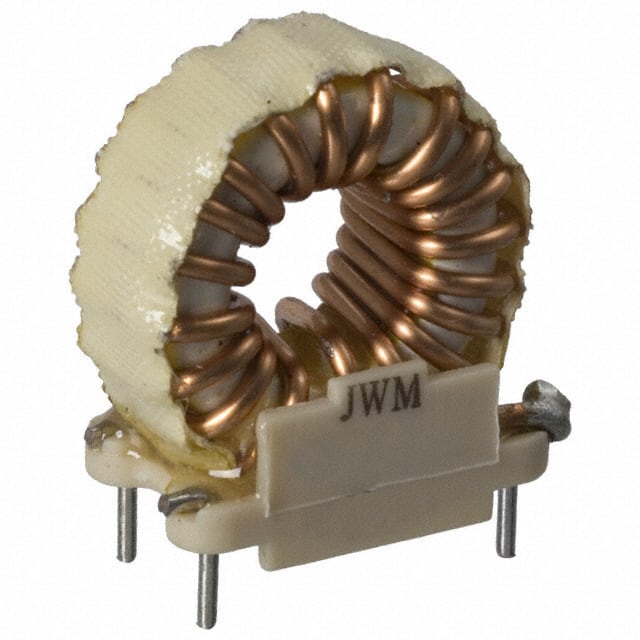

The Bourns 6701-RC is a fixed toroidal inductor designed for high-current applications. It offers an inductance of 10 µH with a tolerance of ±15% and a minimum inductance of 5 µH at rated current. The component is rated for a maximum DC current of 11 A and features a low DC resistance of 8 mOhm, ensuring efficient power handling with minimal losses.
This inductor uses an iron powder core and is fully shielded, reducing electromagnetic interference. It is housed in a radial, vertical, through-hole package with four open leads, measuring 22.22 mm in length, 10.80 mm in width, and 25.40 mm in height. The operating temperature range spans from -55°C to 105°C, making it suitable for demanding environments.
The 6701-RC is compliant with RoHS and REACH standards (unverified) and has an MSL rating of 1 (unlimited). It is commonly used in power supplies, DC-DC converters, and filtering circuits where high current and low resistance are required.
10 µH at 1 kHz
11 A maxmum
8 mOhm (0.008 Ω) maxmum
Radial, Vertial, 4 Leads (Open)
Yes, it is shielded.
-55°C to 105°C
Ion Powder
