| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | NDC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Termination | |
| Voltage Rating |

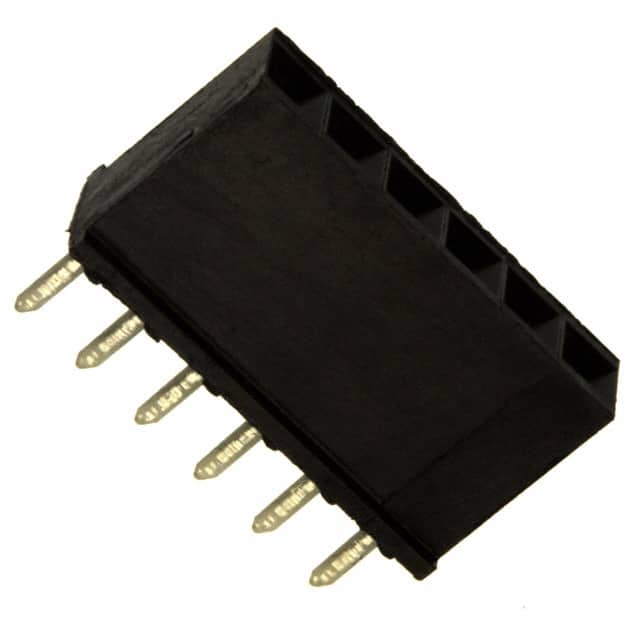

The 66951-006LF is a rectangular connector receptacle from Amphenol ICC with 6 positions arranged in a single row. It is designed for board-to-board connections and uses female socket contacts. The connector is mounted via through-hole solder termination, providing a secure connection to printed circuit boards.
Key specifications include a 2.54mm pitch, an insulation height of 8.25mm, and a contact length of 3.60mm. The contacts are finished with tin to a thickness of 0.76µm. The housing is molded from UL94 V-0 rated material and is black in color. The connector is rated for 1250V and operates over a temperature range of -65°C to 125°C.
The push-pull fastening mechanism ensures reliable mating and unmating. With all 6 positions loaded, the receptacle is ready for immediate use in prototype or production assemblies. This component falls under the headers, receptacles, and female sockets category, and is suitable for various board-to-board interconnect applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
| 38+ | $2.32 | $2.32 |
| 114+ | $2.15 | $2.15 |
| 532+ | $1.92 | $1.92 |
| 1,026+ | $1.84 | $1.84 |
| 5,016+ | $1.64 | $1.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 6 positions, all loaded, in a single row.
The pitch is 2.54mm (0.100 inches).
It is rated for 1250V.
The connector is designed for through-hole mounting with solder termination.
It operates from -65°C to 125°C.
Contacts are finished with tin, with a thickness of 0.76µm (30.0µin).
The insulation height is 8.25mm (0.325 inches).
